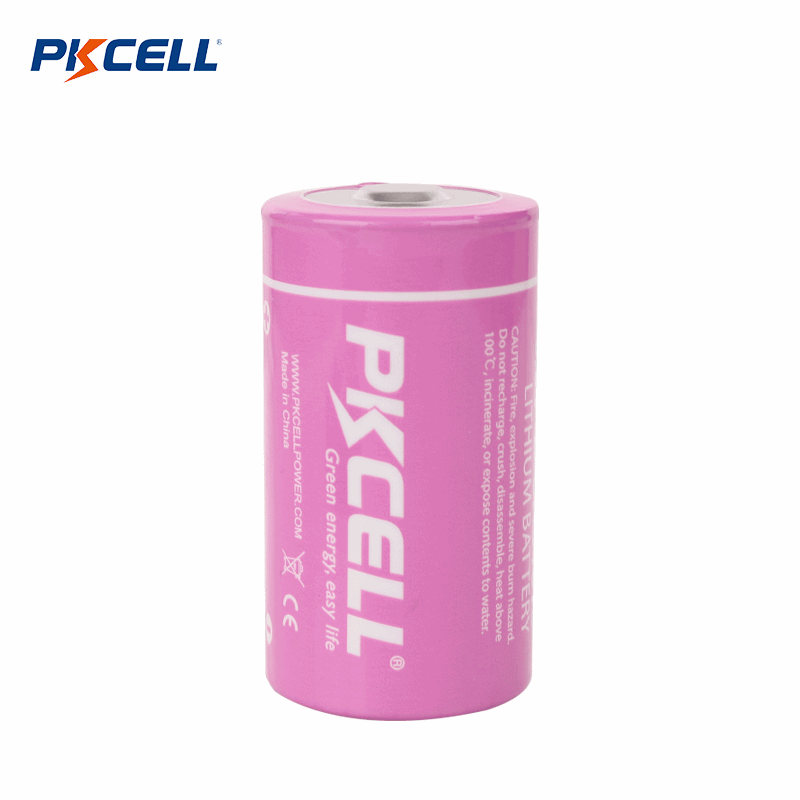

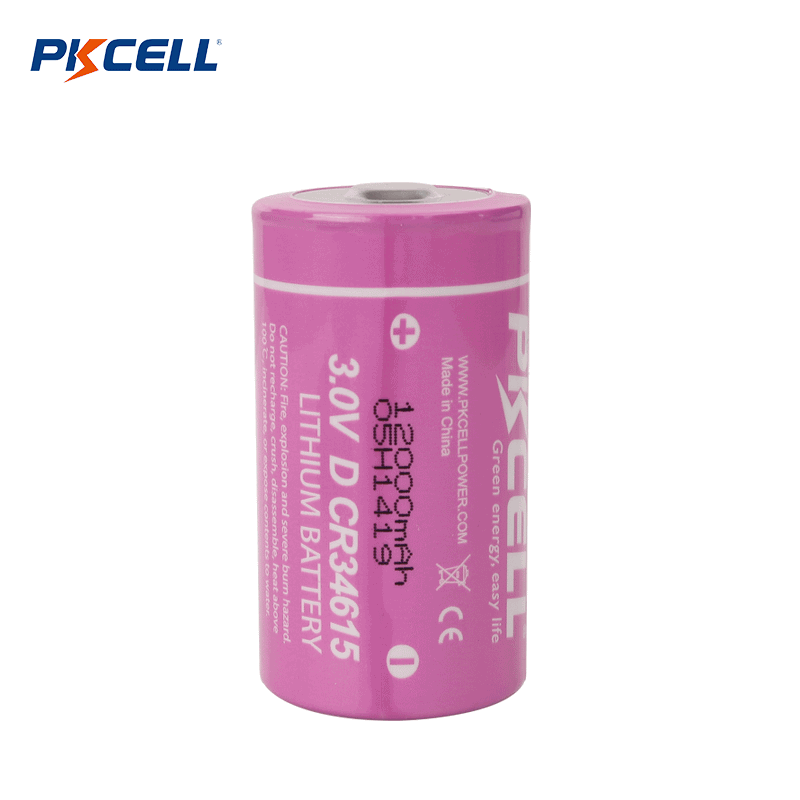

3V CR34615 LI-MnO2 Battery (12000mAh)

Short Description:

With 20+ Years of Experience, Pkcell has become a leading Li-MnO2 Battery manufacturer, Specializing in producing the CR34615 battery.


Dimension: 34.0*61.5 mm

Weight: 125 g

Self-Discharge Rate (Year): <1%

Shelf Life: >10 Years

Operating Temperature: -40~85 °C

Max.Constant Current: 2000 mA

ApplicationsConsumer Electronics, Medical Devices, Security Systems, Utility Meters, Military and Aerospace.


Certification

Certified By IEC, SNI, BSCI, and More, Ensuring Top-Notch Quality and Safety.

PKcell Certification


Product Detail

Product Tags



Advantages:

1. High energy density
2. High open circuit voltage
3. Wide range of operating temperature
4. Stable operating voltage and current
5. Long operating time
6. Low self-discharge rate (less than 1% per year at 25ºC)

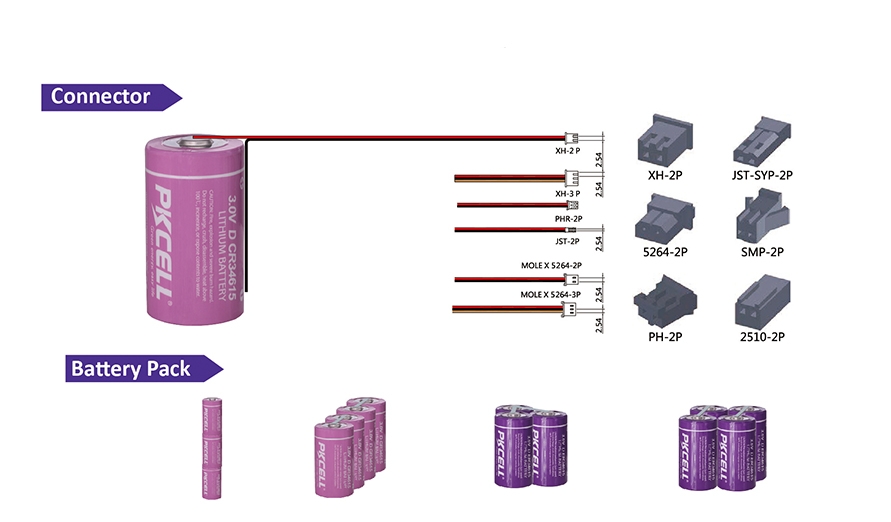

LIMNO2 Battery with connector

Applications:

1. Memory backup: CMOS memory, RTC(real time clock) and computer backup.
2. AMR utility meters: Electricity meter, gas meter and water meter etc.
3. Wireless alarm sensors: Smoke alarm systems, temperature monitors etc.
4. Remote monitor systems: GPS, sea buoys, lifejacket lights, lifecraft lights, cargo-locating systems etc.
5. Automotive and electronics: Automotive security systems, tire-pressure monitoring systems etc.
6. Electronics toll tags: Toll gates.
7. Military electronics: Radio communication, night vision equipment, tracking and positioning systems etc.

Cylindrical LiMnO2 Battery
Model Nominal
Voltage
(V)
Nominal
Capacity
(mAh)
Standard
Discharge
current(mA)
End
Voltage
(V)
Max.
Diameter
(mm)
Max.
Height
(mm)
Reference
Weight
(g)
TestTemperature
(°C)
CR17345(CR123A) 3v 1500.0  10 2 17.0  34.5  16 23±3
CR15H270(CR2) 3v 850.0  10 2 15.6  27.0  11 23±3
CR17335 3v 1500.0  10 2 17.0  33.5  16 23±3
CR14250 3v 650.0  10 2 14.5  25.0  10 23±3
CR14505 3v 1400.0  10 2 14.5  50.5  17 23±3
CR14335 3v 800.0  10 2 14.5  33.5  13 23±3
CR17450 3v 2000.0  10 2 17.0  45.0  25 23±3
CR17450 3v 2400.0  10 2 17.0  45.0  25 23±3
CR17505 3v 2300.0  10 2 17.0  50.5  28 23±3
CR17505 3v 2700.0  10 2 17.0  50.5  28 23±3
CR18505 3v 2500 10 2 18.5 50.5 35 20±3
CR11108(CR1/3N) 3v 160.0  1 2 11.6  10.8  3.3 23±3
CR-V3 6v 3000.0  20 2 29X14.5X52 34 23±3
CR9V 9v 1200 1 5.4v 48.5X36.5X17.5 29 23±2
CR26500 3v 5400 10 2 26.5 50.5 62 20±3
CR34615 3v 12000 10 2 34 61.5 125 20±3
CR-P2 6v 1400.0  10 4 34.8X35.8X19.5 34 23±3
2CR5 6v 1400.0  10 4 34X45X17 34 23±3
