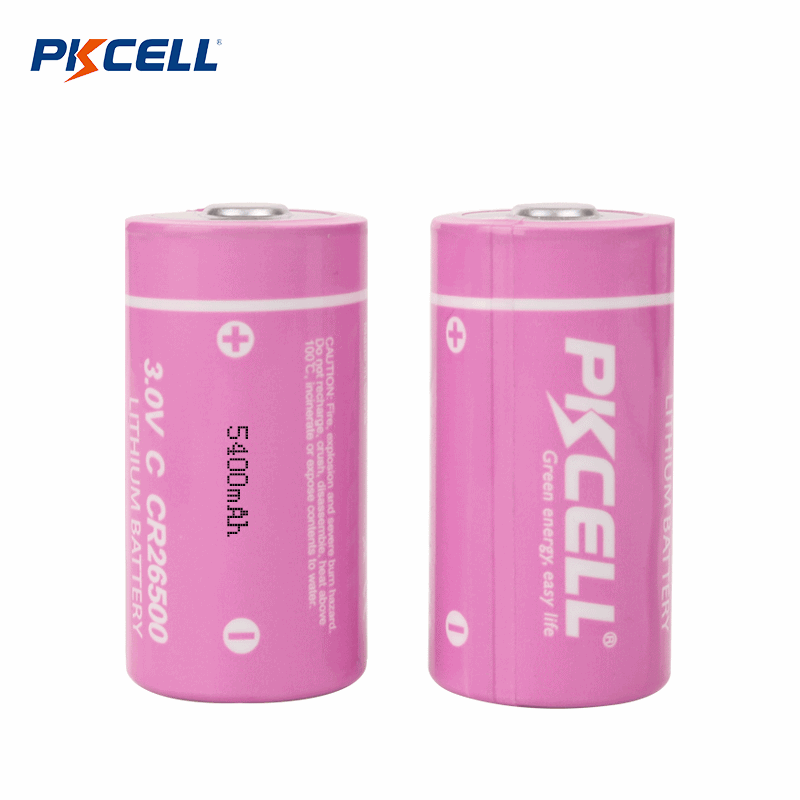

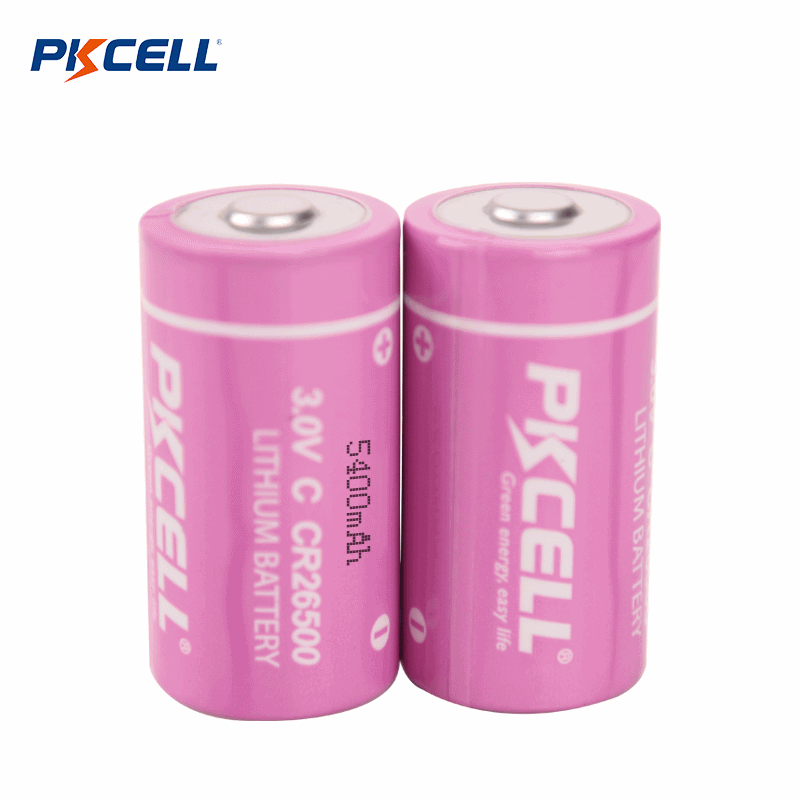

3V CR26500 LI-MnO2 Battery (5400mAh)
Short Description:
With 20+ Years of Experience, Pkcell has become a leading Li-MnO2 Battery manufacturer, Specializing in producing the CR26500 battery.
Dimension: 26.5*50.5 mm
Weight: 62 g
Self-Discharge Rate (Year): <1%
Shelf Life: >10 Years
Operating Temperature: -40~85 °C
Max.Constant Current: 2000 mA
Applications: Consumer Electronics, Medical Devices, Security Systems, Utility Meters, Military and Aerospace.
Certification
Certified By IEC, SNI, BSCI, and More, Ensuring Top-Notch Quality and Safety.
Understanding CR26500 Battery
The CR26500 battery is a high-capacity, 3-volt cylindrical lithium manganese dioxide (Li-MnO2) battery. Its robust design and low self-discharge rate make it an excellent choice for demanding applications where battery replacement is infrequent or challenging. Common uses for the CR26500 include various utility meters (gas, water, electricity), sophisticated security alarm systems, GPS tracking devices, and industrial control systems, all benefiting from its stable voltage output and extended operational life in a wide range of temperatures.
Key Features of Pkcell CR26500
- High Energy Density
- High Open-Circuit Voltage
- Wide Range of Operating Temperatures
- Stable Operating Voltage and Current
- Long Operating Time
- Low Self-Discharge Rate (less than 1% per year at 25ºC)
Main Applications of Pkcell CR26500
- Utility Metering
- Security Systems
- Asset Tracking & Logistics
- Medical Devices
- Memory Backup
- Remote Monitoring & Telemetry
Specification Of Other LiMnO2 Button Cell Battery
| Cylindrical LiMnO2 Battery | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Nominal Voltage (V) | Nominal Capacity (mAh) | Standard Discharge Current (mA) | End Voltage (V) | Max. Diameter (mm) | Max. Height (mm) | Reference Weight (g) | Test Temperature (°C) |
| CR17345(CR123A) | 3v | 1500.0 | 10 | 2 | 17.0 | 34.5 | 16 | 23±3 |
| 3v | 1600.0 | 10 | 2 | 17.0 | 34.5 | 16 | 23±3 | |
| 3v | 1700.0 | 10 | 2 | 17.0 | 34.5 | 16 | 23±3 | |
| 3v | 2100.0 | 10 | 2 | 17.0 | 34.5 | 16 | 23±3 | |
| CR15H270(CR2) | 3v | 850.0 | 10 | 2 | 15.6 | 27.0 | 11 | 23±3 |
| 3v | 1000 | 10 | 2 | 15.6 | 27.0 | 11 | 23±3 | |
| CR17335 | 3v | 1500.0 | 10 | 2 | 17.0 | 33.5 | 16 | 23±3 |
| CR14250 | 3v | 650.0 | 10 | 2 | 14.5 | 25.0 | 10 | 23±3 |
| 3v | 900 | 10 | 2 | 14.5 | 25.0 | 10 | 23±3 | |
| 3v | 1050 | 10 | 2 | 14.5 | 25.0 | 10 | 23±3 | |
| CR14505 | 3v | 1400.0 | 10 | 2 | 14.5 | 50.5 | 17 | 23±3 |
| CR14335 | 3v | 800.0 | 10 | 2 | 14.5 | 33.5 | 13 | 23±3 |
| CR17450 | 3v | 2000.0 | 10 | 2 | 17.0 | 45.0 | 25 | 23±3 |
| CR17450 | 3v | 2400.0 | 10 | 2 | 17.0 | 45.0 | 25 | 23±3 |
| CR17505 | 3v | 2300.0 | 10 | 2 | 17.0 | 50.5 | 28 | 23±3 |
| 3v | 2800.0 | 10 | 2 | 17.0 | 50.5 | 28 | 23±3 | |
| CR18505 | 3v | 2500 | 10 | 2 | 18.5 | 50.5 | 35 | 20±3 |
| CR11108(CR1/3N) | 3v | 170.0 | 1 | 2 | 11.6 | 10.8 | 3.3 | 23±3 |
| CR-V3 | 6v | 3000.0 | 20 | 2 | 29X14.5X52 | 34 | 23±3 | |
| CR9V | 9v | 1200 | 1 | 5.4 | 48.5X36.5X17.5 | 29 | 23±2 | |
| CR26500 | 3v | 5400 | 10 | 2 | 26.5 | 50.5 | 62 | 20±3 |
| CR34615 | 3v | 12000 | 10 | 2 | 34 | 61.5 | 125 | 20±3 |
| CR-P2 | 6v | 1200 | 10 | 4 | 34.8X35.8X19.5 | 34 | 23±3 | |
| 6v | 1400.0 | 10 | 4 | 34.8X35.8X19.5 | 34 | 23±3 | ||
| 2CR5 | 6v | 1400.0 | 10 | 4 | 34X45X17 | 34 | 23±3 | |
More Than Just Individual Cells - We Also Offer CR Cylindrical Batteries with Different Terminations
Why Choose Pkcell Battery?
Typical Discharge Characteristics
Warning:
- Do not short-circuit, recharge, heat, disassemble
- Do not force-discharge.
- Do not make the anode and the cathode reversed
- Do not solder directly
Frequently Asked About CR26500 LiMnO2 Cylindrical Battery
- Lead Time: Standard samples typically arrive in 7-12 days. Formal orders usually take around 25 days, though smaller quantities might ship faster, potentially within 15-18 days.
- Payment Methods: We accept various payment types, including T/T (Telegraphic Transfer), L/C (Letter of Credit), and PayPal.
- Shipping: We offer flexibility! Depending on your needs and location, we can ship your order via air freight (using carriers like FEDEX, DHL, UPS, EMS, etc.) or via sea freight.
- Delivery Terms: We can work with several common international shipping terms, including EXW, FCA, FOB, CFR, and DDU.
We have a minimum order value of USD $500. The actual quantity you receive depends on the unit price of the specific batteries you choose. Absolutely! We understand you need to test our products. We're happy to provide samples for your evaluation before you place a formal order.
-
Advantages of LiMnO2 (vs. LiSOCl2):
- Generally safer with better thermal stability.
- Lower cost.
- Less noticeable voltage delay/passivation effect.
- Often, better pulse discharge capability (depending on construction).
-
Disadvantages of LiMnO2 (vs. LiSOCl2):
- Lower energy density (less capacity for the size/weight).
- Lower nominal voltage (3.0V vs. 3.6V).
- Less stable/flat discharge voltage curve.
- Reduced performance at extremely low temperatures compared to LiSOCl2.
Yes, we support the customization of CR batteries for product integration. This includes adding solder tabs and pins according to your specific requirements.
No. The CR26500 is a primary (non-rechargeable) lithium battery. Attempting to recharge it can result in leakage, fire, or explosion.
With low self-discharge (typically <1% per year), CR26500 batteries can offer a shelf life of up to 10 years and long service life in low-drain applications.
The CR26500 uses Li‑MnO₂ chemistry with 3V output, optimized for higher pulse capability. ER26500 uses Li‑SOCl₂, delivers 3.6V, and is suited for ultra-long life in low-drain applications.
Yes, CR26500 batteries offer good pulse performance, making them suitable for devices with short bursts of high current, such as wireless transmitters or alarms.
Yes. Reputable manufacturers like PKCELL offer CR26500 batteries with UN38.3, RoHS, UL, and IEC certifications for safe use in industrial environments.
