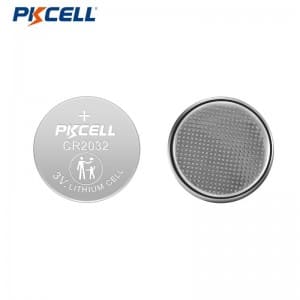

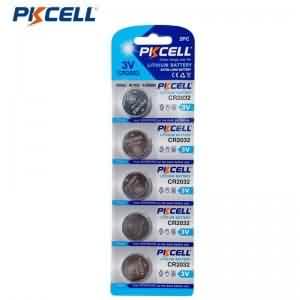

PKCELL CR2032 3V 210mAh Lithium Button Cell Battery Supplier

Short Description:

PKCELL CR2032 Lithium Battery 210mAh, 3V. With 5 Years  Shelf Life.  CR2032 batteries are also known as: 5004LC, BR2032, CR2032, DL2032, ECR2032, KCR2032, and KECR2032. These batteries are all CR2032 battery equivalents.


Product Detail

Product Tags

PKCELL Button Cell Battery with Different Terminations

different button cell battery terminations
Disply and storage:
1.Batteries shall be stored in well-ventilateddry and cool conditions
2.Battery cartons should not be piledup in severa layers,or should not exceed a specified height
3.Batteries should not be exposed to direct sun ray for a long time or placed in areas where they get wet by rain.
4.Do not mix unpacked batteries so as to avoid mechanical damage and/or short circuit among each other

Warnings and Cautions:

1. Do not short circuited, recharge, heat, disassemble nor dispose in fire
2. Do not force-discharge.
3. Do not make the anode and the cathode reversed
4. Do not solder directly

Advantages:
1) Environmental friendly, Light weight
2) High density of energy
3) Low self-discharge
4) Low internal resistance
5) No memory effect
6) Free of mercury
7) Safety assurance : No fire, No explosion, No leakage
CR battery
All kinds of CR Battery Applications
Item No. System Normal Voltage (V) Capacity (mAH) Dimension(mm) Weight
(g)
CR927 Lithium 3.0  30 9.5×2.7 0.6
CR1216 Lithium 3.0  25 12.5×1.6 0.7
CR1220 Lithium 3.0  40 12.5×2.0 0.9
CR1225 Lithium 3.0  50 12.5×2.5 1.0
CR1616 Lithium 3.0  50 16.0×1.6 1.2
CR1620 Lithium 3.0  70 16.0×2.0 1.6
CR1632 Lithium 3.0  120 16.0×3.2 1.3
CR2016 Lithium 3.0  75 20.0×1.6 1.8
CR2025 Lithium 3.0  150 20.0×2.5 2.4
CR2032 Lithium 3.0  210 20.0×3.2 3.0
CR2032 Lithium 3.0  220 20.0×3.2 3.1
CR2050 Lithium 3.0  150 20.0×2.5 2.4
CR2320 Lithium 3.0  130 23.0×2.0 3.0
CR2325 Lithium 3.0  190 23.0×2.5 3.5
CR2330 Lithium 3.0  260 23.0×3.0 4.0
CR2430 Lithium 3.0  270 24.5×3.0 4.5
CR2450 Lithium 3.0  600 24.5×5.0 6.2
CR2477 Lithium 3.0  900 24.5×7.7 7.0
CR3032 Lithium 3.0  500 30.0×3.2 6.8
