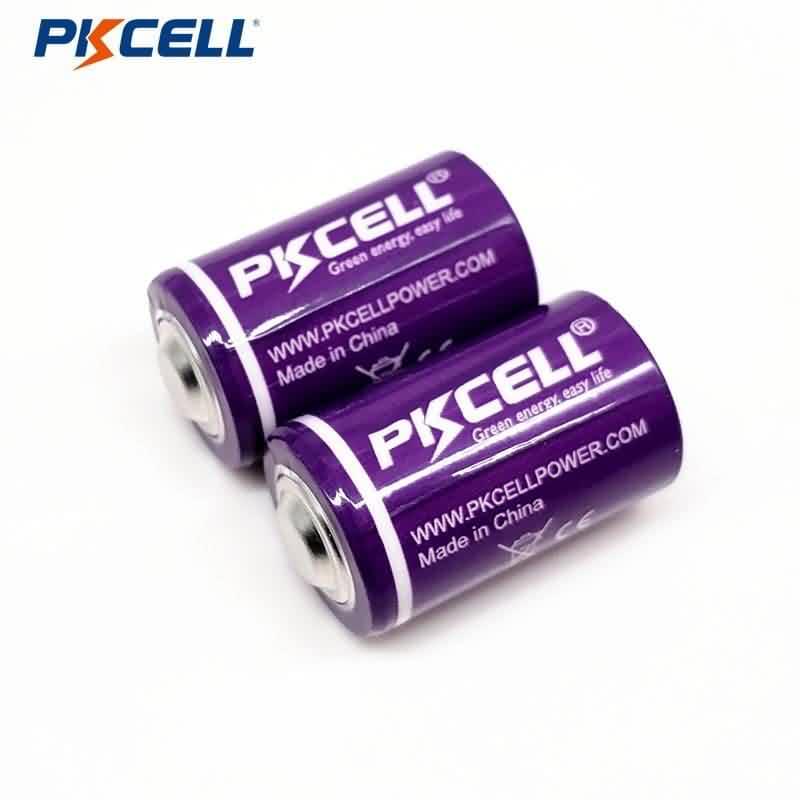

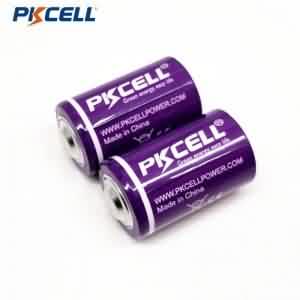

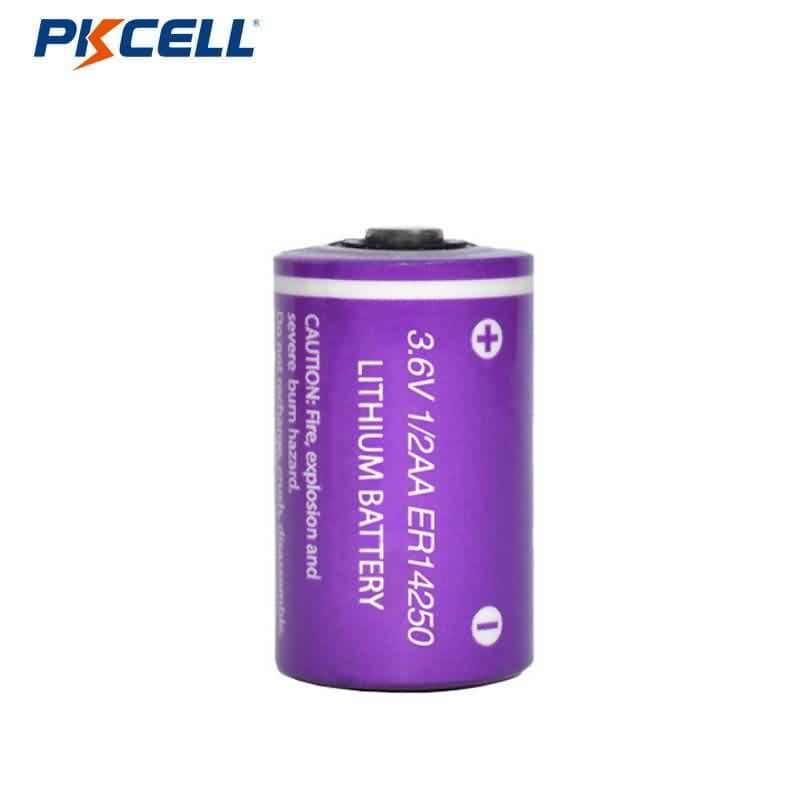

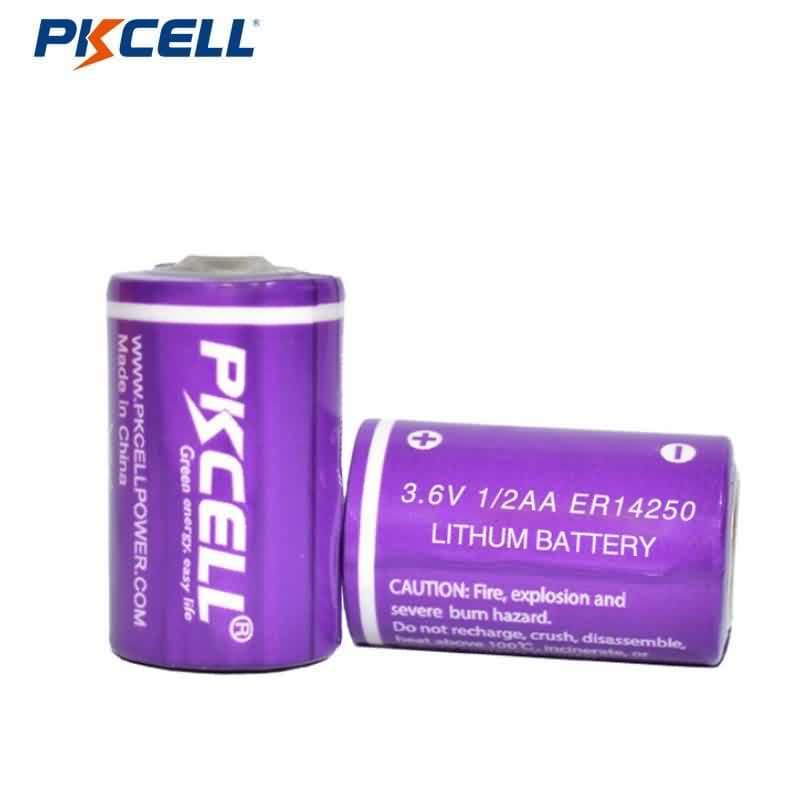

PKCELL ER14250 1/2AA 3.6V 1200mAh Li-SOCL2 Battery Supplier

Short Description:

Lithium thionly chloride batteries have a lithium metal anode and thionly chloride(SOCl2) as active cathode; it has the highest specific capacity and specific energy in all practical chemical power sources and is widely used as a new energy system in electronic devices.This battery is ideal for such long-term applications as power for electronic devices and electric power, water, and gas meters, and especially as a backup power source for memory ICs.They deliver a voltage of 3.6 V and are cylindrical in shape, in 1/2AA to D format, with spiral electrodes for power applications and bobbin construction for prolonged discharge.

Get Wholesale B2B price, Customization or other Quotation!

Request Quote Datasheet Download as PDF

Product Detail

Product Tags

Typical Applications:

Alarms and security systems, GPS, metering systems, memory back up, tracking system and GSM communication, Aerospace, Defence, Military, Power Management, Portable Devices, Consumer Electronics, Real-time clock, Tracking system, Utility metering,etc

ER14250 Specifications:

Model name: ER14250	Size: CC, Φ14.5mm*25.2mm(Max)
Nominal capacity: 1200mAh(1.2Ah)	Nominal voltage: 3.6V
Open circuit voltage:3.66V	Cut-off Voltage: 2.0V
Max Pulse Discharge current: 100mA	Standard Current : 0.5mA
Max Continuous Discharge current: 50mA	Operating temperature range: -55°C to 85°C
Typical weight: 9.3g	Typical Shelf life: 10 years

Available Terminations: 1) Standard terminations 2)Solder tabs 3)Axial Pins 4)or special requirement(wire, connectors, etc)

Features:

1) High Energy density, High voltage, stable during most of the application’s lifetime

2) Wide range of operating temperature

3) Long self-discharge rate (≤1% per year during Storage)

4) Long storage life (10 years under room temperature)

5) Hermetic glass-to-metal sealing

6) Non-flammable electrolyte

7) Meet IEC86-4 safety standard

8) Safe to export MSDS, UN38.3 cert. available

Storage condition:

clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated.

Warning:

1)These are non rechargeable batteries.

2)Fire, explosion and burn hazard.

3)Do not recharge, short circuit,crush, disassemble, heat above 100℃ incinerate.

4)Do not use the battery beyond the permitted temperate range.

Li-SOCl2(Energy Type)
Model IEC		Nominal Voltage(V)	Dimensions (mm)	Nominal Capacity (mAh)	Standard Current (mA)	Max Continuous Discharge Current (mA)	Max Pulse Discharge Current (mA)	Cut-off Voltage (V)	Weight Approx (g)	Operating Temperature (°C)
ER10450	AAA	3.6	10.0×45.0	800	1.00	10	20	2.00	9	-55~+85
ER14250	1/2AA	3.6	14.5×25.0	1200	0.50	50	100	2.00	10	-55~+85
ER14335	2/3AA	3.6	14.5×33.5	1650	0.70	50	100	2.00	13	-55~+85
ER14505	AA	3.6	14.5×50.5	2400	1.00	100	200	2.00	19	-55~+85
ER17335		3.6	17×33.5	2100	1.00	50	200	2.00	30	-55~+85
ER17505		3.6	17×50.5	3400	1.00	100	200	2.00	32	-55~+85
ER18505	A	3.6	18.5×50.5	4000	1.00	100	200	2.00	32	-55~+85
ER26500	C	3.6	26.2×50.5	8500	2.00	200	400	2.00	55	-55~+85
ER34615	D	3.6	34.2×61.5	19000	3.00	200	400	2.00	107	-55~+85
ER9V	9V	10.8	48.8×17.8×7.5	1200	1.00	50	100	2.00	16	-55~+85
ER261020		3.6	26.5×105	16000	3.00	200	400	2.00	100	-55~+85
ER341245		3.6	34×124.5	35000	5.00	400	500	2.00	195	-55~+85
