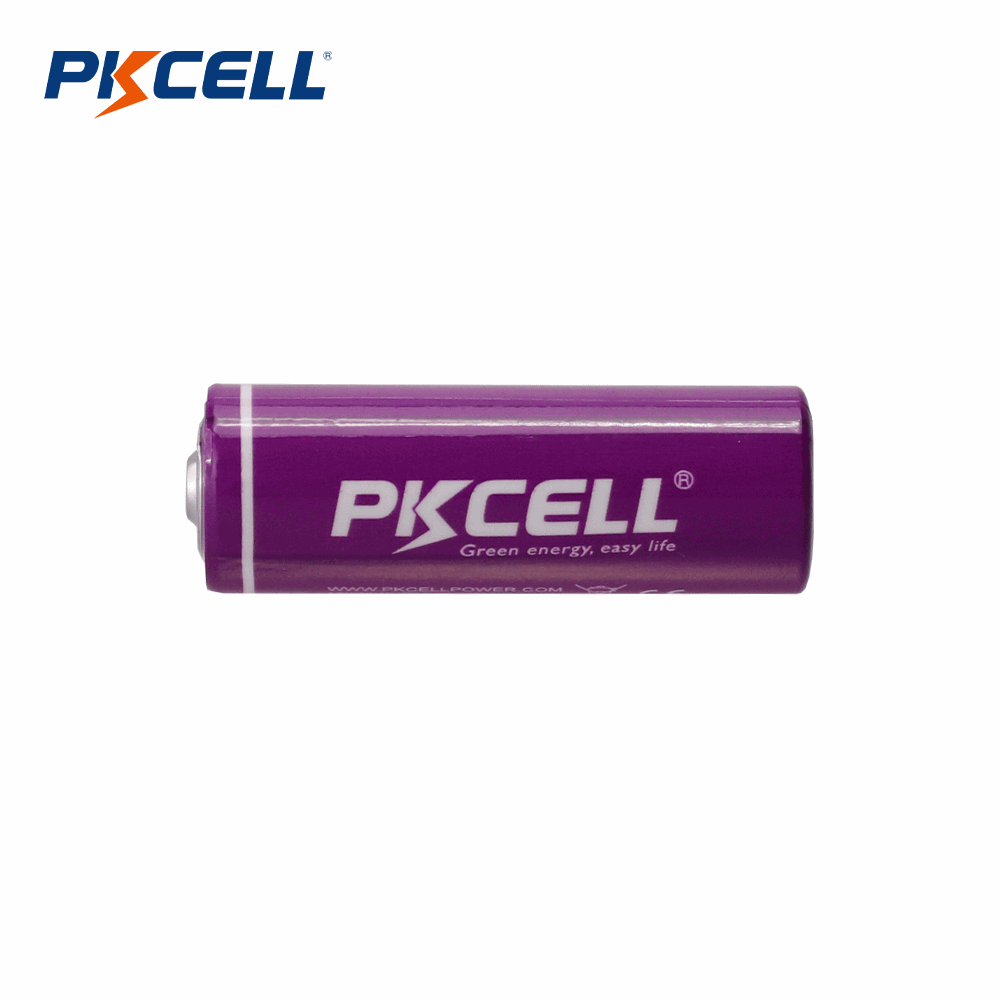

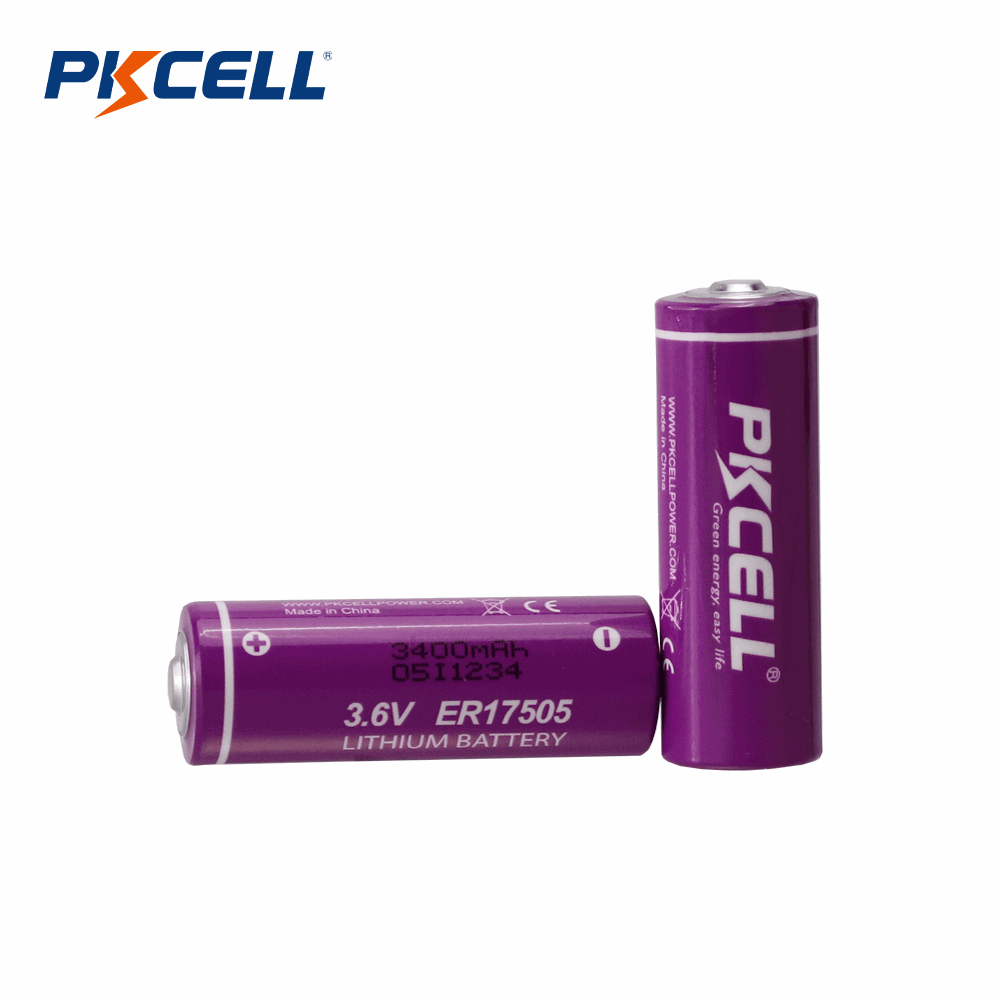

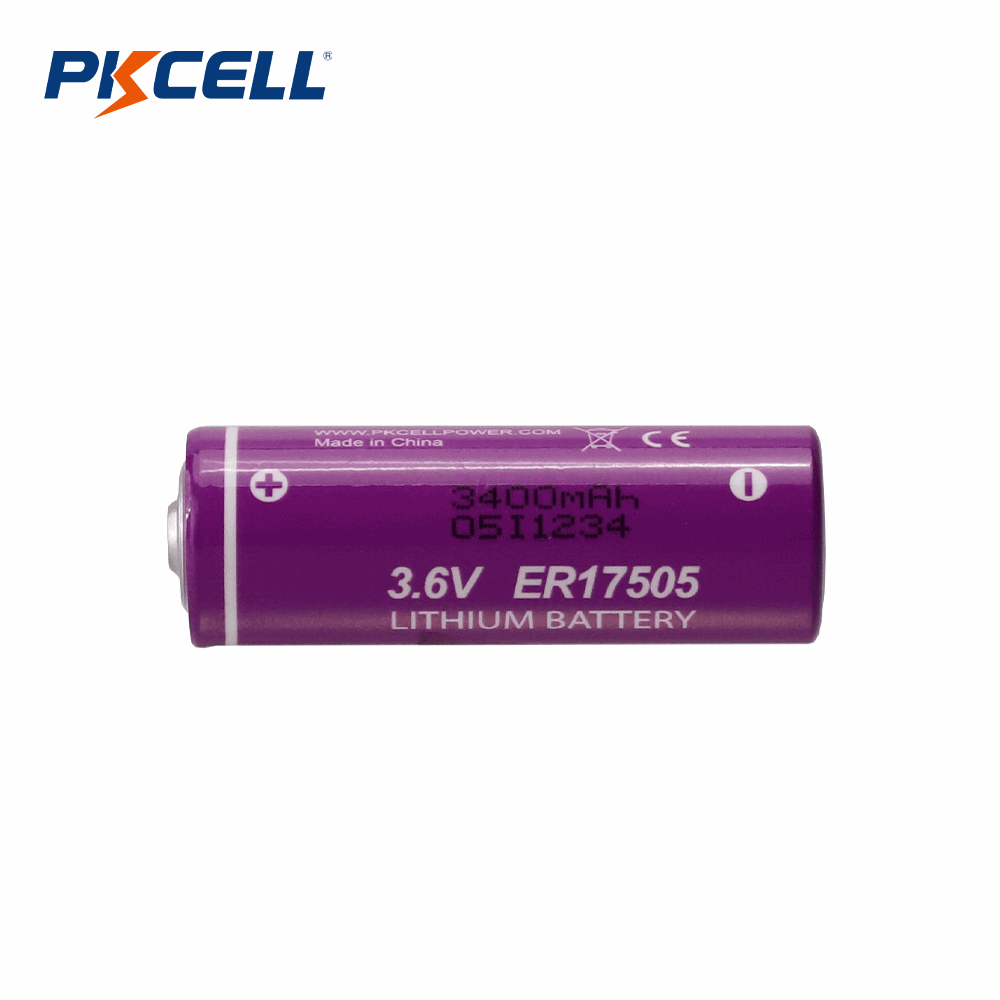

3.6V ER17505 Li-SoCl2 Battery (3400mAh)

Short Description:

With 20+ Years of Experience, Pkcell has become a leading Li-Socl2 Battery manufacturer, Specializing in the production of the ER17505 battery.


Dimension: 17.5*50.5 mm

Weight: 29 g

Self-Discharge Rate (Year): <1%

Shelf Life: >10 Years

Operating Temperature: -55~85 °C

Standard Current: 1 mA

Max Discharge Current: 100 mA (continuous), 200 mA (Pulse)

Applications : Electronic devices and Electric power/water/gas meters,Memory ICs and more.


Certification

Certified By IEC, SNI, BSCI, and More, Ensuring Top-Notch Quality and Safety.

PKcell Certification


Product Detail

Product Tags

Typical Applications:
Alarms and security systems, GPS, metering systems, memory back up, tracking system and GSM communication, Aerospace, Defence, Military, Power Management, Portable Devices, Consumer Electronics, Real-time clock, Tracking system, Utility metering,etc.
Specifications:
Model name: ER17505
Size: CC, Φ17.5mm*50.5mm(Max)
Nominal capacity: 3600mAh(3.6Ah)
Nominal voltage: 3.6V
Open circuit voltage:3.66V
Cut-off Voltage: 2.0V
Operating temperature range: -55°C to 85°C
Max Continuous Discharge current: 100mA
Max Pulse Discharge current: 200mA
Standard Current :1.0mA
Typical weight: 25g
Typical Shelf life: 10 years
Available Terminations: 1) Standard terminations 2)Solder tabs 3)Axial Pins 4)or special requirement(wire, connectors, etc)
Features:
1) High Energy density, High voltage, stable during most of the application’s lifetime
2) Wide range of operating temperature
3) Long self-discharge rate (≤1% per year during Storage)
4) Long storage life (10 years under room temperature)
5) Hermetic glass-to-metal sealing
6) Non-flammable electrolyte
7) Meet IEC86-4 safety standard
8) Safe to export MSDS, UN38.3 cert. available
Storage condition:
clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated.
Warning:
1)These are non rechargeable batteries.
2)Fire, explosion and burn hazard.
3)Do not recharge, short circuit,crush, disassemble, heat above 100℃ incinerate.
4)Do not use the battery beyond the permitted temperate range.

Li-SOCl2(Energy Type)
Model  IEC Nominal Voltage(V) Dimensions       (mm) Nominal Capacity (mAh) Standard Current     (mA) Max Continuous Discharge Current         (mA) Max  Pulse Discharge Current (mA) Cut-off Voltage (V) Weight Approx (g) Operating      Temperature          (°C)
ER10450 AAA 3.6 10.0×45.0 800 1.00  10 20 2.00  9 -55~+85
ER14250 1/2AA 3.6 14.5×25.0 1200 0.50  50 100 2.00  10 -55~+85
ER14335 2/3AA 3.6 14.5×33.5 1650 0.70  50 100 2.00  13 -55~+85
ER14505 AA 3.6 14.5×50.5 2400 1.00  100 200 2.00  19 -55~+85
ER17335   3.6 17×33.5 2100 1.00  50 200 2.00  30 -55~+85
ER17505   3.6 17×50.5 3400 1.00  100 200 2.00  32 -55~+85
ER18505 A 3.6 18.5×50.5 4000 1.00  100 200 2.00  32 -55~+85
ER26500 C 3.6 26.2×50.5 8500 2.00  200 400 2.00  55 -55~+85
ER34615 D 3.6 34.2×61.5 19000 3.00  200 400 2.00  107 -55~+85
ER9V 9V 10.8 48.8×17.8×7.5 1200 1.00  50 100 2.00  16 -55~+85
ER261020   3.6 26.5×105 16000 3.00  200 400 2.00  100 -55~+85
ER341245   3.6 34×124.5 35000 5.00  400 500 2.00  195 -55~+85
