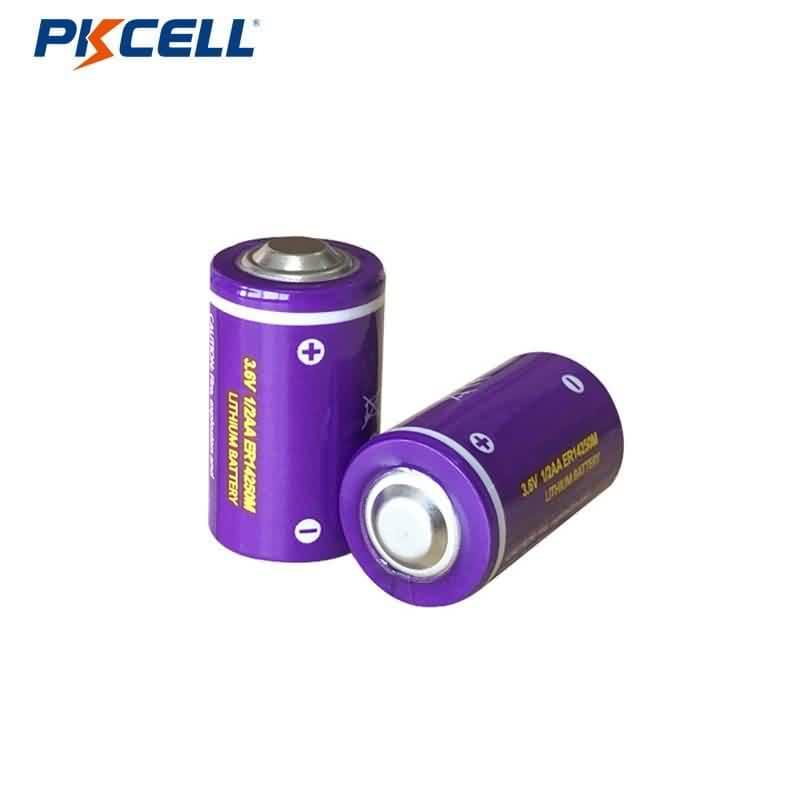

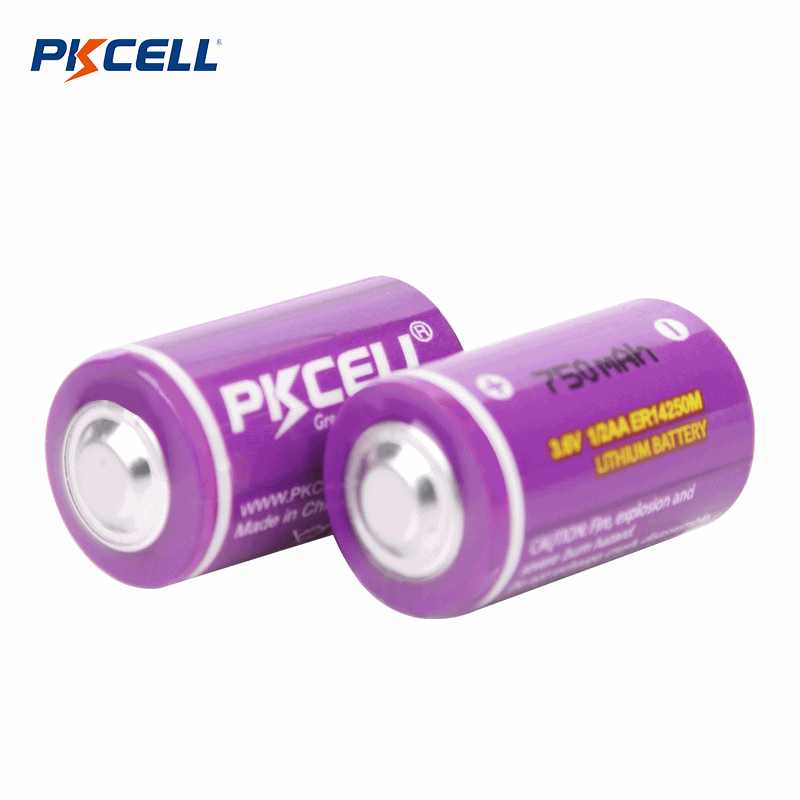

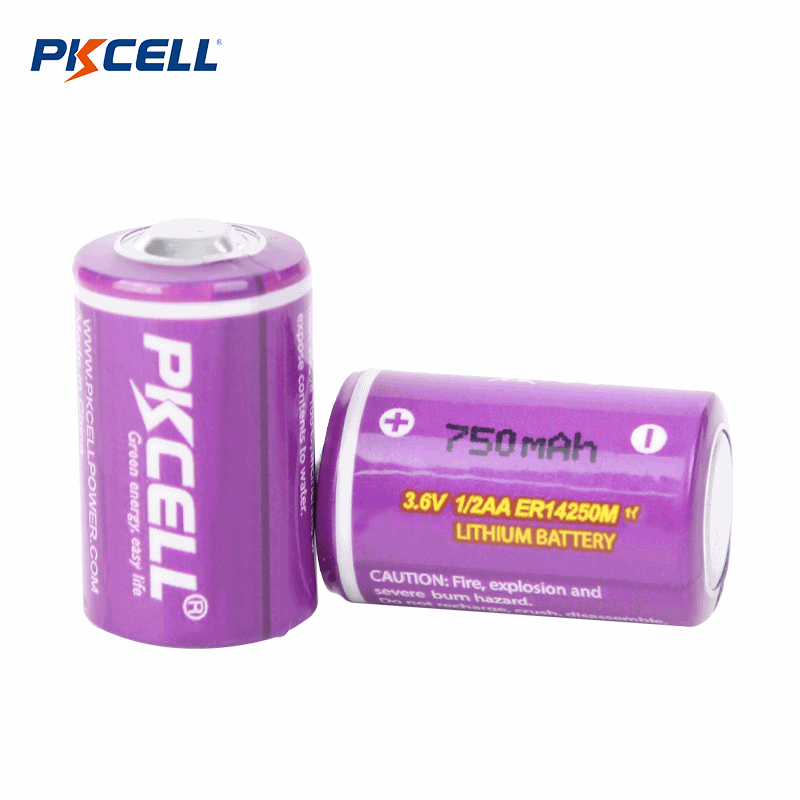

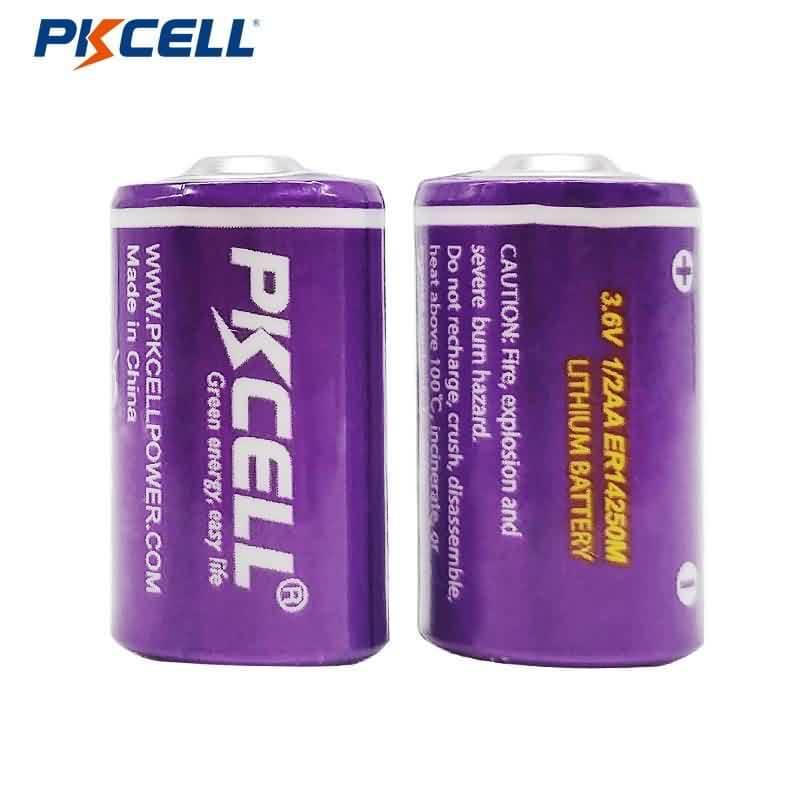

PKCELL ER14250M 1/2AA 3.6V 750mAh Li-SOCL2 Battery Manufacturer

Short Description:

Lithium thionly chloride batteries have a lithium metal anode and thionly chloride(SOCl2) as active cathode; it has the highest specific capacity and specific energy in all practical chemical power sources and is widely used as a new energy system in electronic devices.This battery is ideal for such long-term applications as power for electronic devices and electric power, water, and gas meters, and especially as a backup power source for memory ICs.They deliver a voltage of 3.6 V and are cylindrical in shape, in 1/2AA to D format, with spiral electrodes for power applications and bobbin construction for prolonged discharge.

Get Wholesale B2B Price, Customizion or Other Quotation!


Product Detail

Product Tags

Typical Applications:
Alarms and security systems, GPS, metering systems, memory back up, tracking system and GSM communication, Aerospace, Defence, Military, Power Management, Portable Devices, Consumer Electronics, Real-time clock, Tracking system, Utility metering,etc.
Specifications:
Model name: ER14250M
Size: 1/2AA, Φ14.4mm*25mm(Max)
Nominal capacity: 750mAh(0.75Ah)
Nominal voltage: 3.6V
Operating temperature range: -55°C to 85°C
Max Continuous Discharge current: 120mA
Max Pulse Discharge current: 250mA
Cut-off Voltage: 2.0V
Typical weight: 10g
Typical Shelf life: 10 years
Available Terminations: 1) Standard terminations 2)Solder tabs 3)Axial Pins 4)or special requirement(wire, connectors, etc)
Features:
1) High Energy density, High voltage, stable during most of the application’s lifetime
2) Wide range of operating temperature
3) Long self-discharge rate (≤1% per year during Storage)
4) Long storage life (10 years under room temperature)
5) Hermetic glass-to-metal sealing
6) Non-flammable electrolyte
7) Meet IEC86-4 safety standard
8) Safe to export MSDS, UN38.3 cert. available
Storage condition:
clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated.
Warning:
1)These are non rechargeable batteries,
2)Fire, explosion and burn hazard.
3)Do not recharge, short circuit,crush, disassemble, heat above 100℃ incinerate.
4)Do not use the battery beyond the permitted temperate range.

Li-SOCl2(Power Type)
Model  IEC Nominal Voltage(V) Dimensions       (mm) Nominal Capacity (mAh) Standard Current     (mA) Max Continuous Discharge Current         (mA) Max  Pulse Discharge Current (mA) Cut-off Voltage (V) Weight Approx (g) Operating      Temperature          (°C)
ER14250M 1/2AA 3.6 14.4×25.0 750 0.50  100 300 2.00  10 -55~+85
ER14335M 2/3AA 3.6 14.4×29.0 1200 0.70  200 400 2.00  13 -55~+85
ER14505M AA 3.6 14.5×50.5 1800 1.00  400 800 2.00  19 -55~+85
ER17335M   3.6 17.0×33.5 1700 1.00  500 1000 2.00  20 -55~+85
 ER17505M   3.6v 17.5×50.5 2800 1.00  500 1000 2.00  29 -55~+85
ER18505M A 3.6 18.5×50.5 3200 1.00  600 1000 2.00  32 -55~+85
ER26500M C 3.6 26.2×50.5 6500 2.00  1000 1500 2.00  55 -55~+85
ER34615M D 3.6 34.2×61.5 14000 10.00  2000 3000 2.00  106 -55~+85
