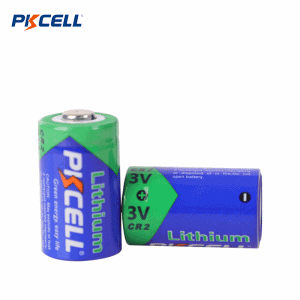

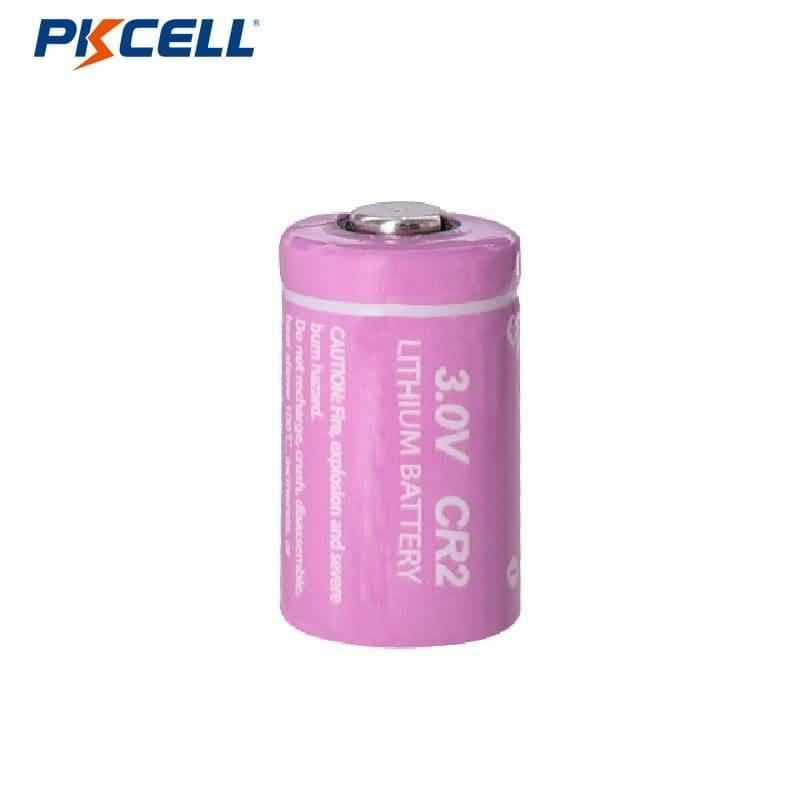

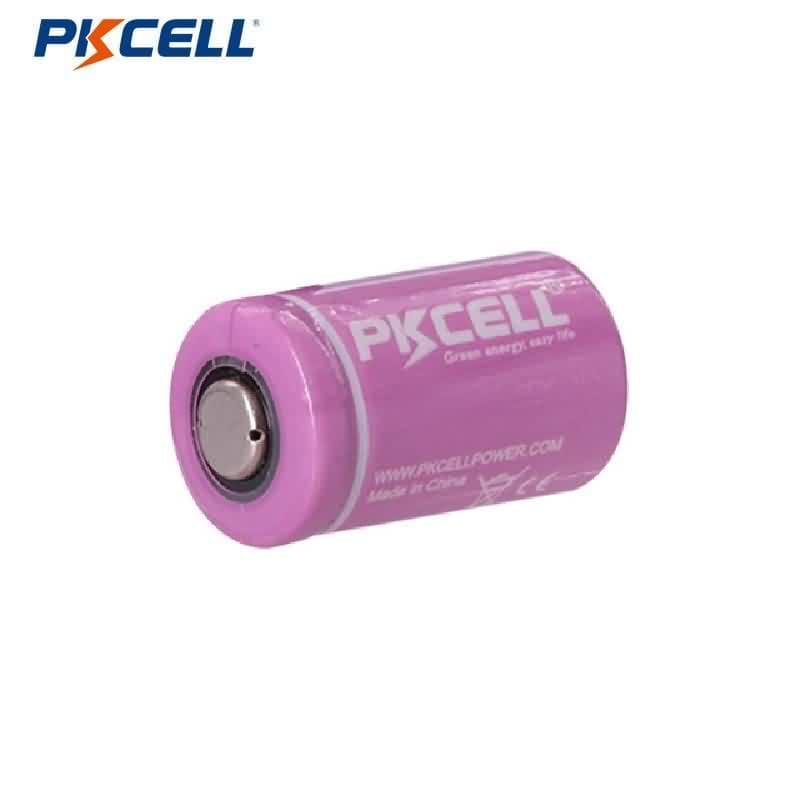

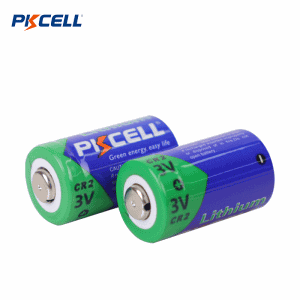

3V CR2 Li-MnO2 Battery (850mAh)

Short Description:

With 20+ Years of Experience, Pkcell has become a leading Li-MnO2 Battery manufacturer, Specializing in producing the CR2 battery.


Dimension: 15.6*27 mm

Weight: 11 g

Self-Discharge Rate (Year): <1%

Shelf Life: >10 Years

Operating Temperature: -40~85 °C

Max.Constant Current: 1000 mA

Max.Pulse Current: 2000 mA

ApplicationsConsumer Electronics, Medical Devices, Security Systems, Utility Meters, Military and Aerospace.


Certification

Certified By IEC, SNI, BSCI, and More, Ensuring Top-Notch Quality and Safety.

PKcell Certification


Product Detail

Product Tags

Applications:

1. Memory backup: CMOS memory, RTC(real time clock) and computer backup.
2. AMR utility meters: Electricity meter, gas meter and water meter etc.
3. Wireless alarm sensors: Smoke alarm systems, temperature monitors etc.
4. Remote monitor systems: GPS, sea buoys, lifejacket lights, lifecraft lights, cargo-locating systems etc.
5. Automotive and electronics: Automotive security systems, tire-pressure monitoring systems etc.
6. Electronics toll tags: Toll gates.
7. Military electronics: Radio communication, night vision equipment, tracking and positioning systems etc.

Advantages:
1. High energy density
2. High open circuit voltage
3. Wide range of operating temperature
4. Stable operating voltage and current
5. Long operating time
6. Low self-discharge rate (less than 1% per year at 25ºC)

Specification:

Cylindrical Li/ MnO2 Battery
Model Nominal
Voltage
(V)
Nominal
Capacity
(mAh)
Standard
Discharge
current(mA)
End
Voltage
(V)
Max.
Diameter
(mm)
Max.
Height
(mm)
Reference
Weight
(g)
TestTemperature
(°C)
CR17345(CR123A) 3v 1500.0  10 2 17.0  34.5  16 23±3
CR15H270(CR2) 3v 850.0  10 2 15.6  27.0  11 23±3
CR17335 3v 1500.0  10 2 17.0  33.5  16 23±3
CR14250 3v 650.0  10 2 14.5  25.0  10 23±3
CR14505 3v 1400.0  10 2 14.5  50.5  17 23±3
CR14335 3v 800.0  10 2 14.5  33.5  13 23±3
CR17450 3v 2000.0  10 2 17.0  45.0  25 23±3
CR17450 3v 2400.0  10 2 17.0  45.0  25 23±3
CR17505 3v 2300.0  10 2 17.0  50.5  28 23±3
CR17505 3v 2700.0  10 2 17.0  50.5  28 23±3
CR18505 3v 2500 10 2 18.5 50.5 35 20±3
CR11108(CR1/3N) 3v 160.0  1 2 11.6  10.8  3.3 23±3
CR-V3 6v 3000.0  20 2 29X14.5X52 34 23±3
CR9V 9v 1200 1 5.4v 48.5X36.5X17.5 29 23±2
CR26500 3v 5400 10 2 26.5 50.5 62 20±3
CR34615 3v 12000 10 2 34 61.5 125 20±3
CR-P2 6v 1400.0  10 4 34.8X35.8X19.5 34 23±3
2CR5 6v 1400.0  10 4 34X45X17 34 23±3
