PKCELL 9000mAh 3.6V ER26500+HPC/ SPC 1520 Battery Pack Manufacturer

Short Description:

The HPC Series represents a pioneering class of Hybrid Pulse Capacitors, blending the capabilities of lithium-ion battery technology with supercapacitors to create a superior energy storage solution. These industrial-grade Li-ion batteries surpass the limitations typically found in standard consumer-grade rechargeable Li-ion cells, such as a lifespan capped at 5 years or 500 full charge cycles, high yearly self-discharge rates (as much as 60%), a constrained operational temperature range (-20°C to 60°C), limited high-pulse delivery, and an inability to recharge under extreme temperatures.

Request Quote Datasheet Download as PDF

Product Detail

Product Tags

Designed for longevity, HPC Series Li-ion batteries offer an operational life of up to 20 years and support 5,000 full recharge cycles. These batteries are adept at storing the high-current pulses needed for advanced two-way wireless communications and operate within an expanded temperature range of -40°C to 85°C, with the capability to withstand storage temperatures up to 90°C in harsh environmental conditions.

Furthermore, HPC Series cells are versatile in their recharging options, accommodating DC power as well as integration with photovoltaic solar systems or other energy harvesting technologies to ensure dependable, long-term power. Available in both standard AA and AAA sizes as well as customizable battery packs, the HPC Series is engineered to meet a wide range of power requirements.

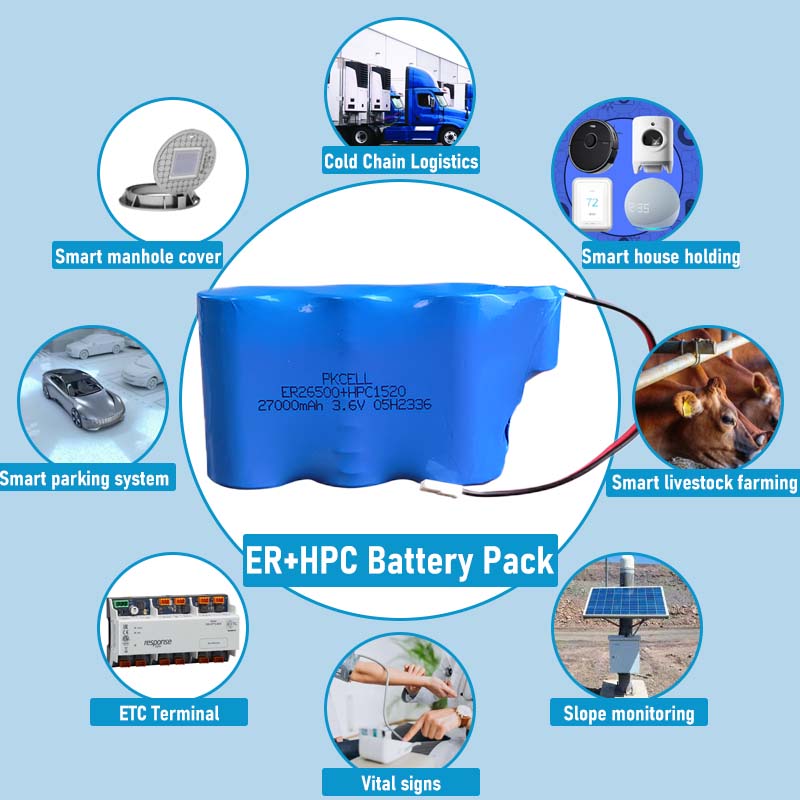

Huge Applications

Notes:

Shelf Life at different storage temperatures to 80% of initial capacity：
20℃: 3 years (HPC), 10 years (HPC+ER)
60℃: 4 weeks (HPC), 7 years (HPC+ER)
80℃: 1 week (HPC), At least 1 year (HPC+ER)

Key Benefits:

Longer operating life (20 years)
Up to 10 times more life cycles (5,000 full cycles)
Wider operating temp. (-40°C to 85°C, storage up to 90°C)
Delivers high current pulses (up to 5A for AA cell)
Low annual self-discharge rate (less than 5% per year)
Charging at extreme temperatures (-40°C to 85°C)
Glass-to-metal hermetic seal (vs. crimped seals)

Other Combinations (Also Offer Customized Battery Pack Solution):

Model	Nominal Voltage4(V)	Nominal Capacity(mAh)	Max.Pulse Discharge Current(mA)	Operating Temperature Range	Available4Terminations
ER14250+HPC1520	3.6	1200	45	-55~85℃	S: Standard Terminations T: Solder Tabs P: Axial Pins Special Termination are available Upon Request
ER14505+HPC1520	3.6	2400	200	-55~85℃
ER26500+HPC1520	3.6	9000	300	-55~85℃
ER34615+HPC1550	3.6	57000	800	-55~85℃
ER34615+HPC1550	3.6	19000	400	-55~85℃
ER34615M+HPC1550	3.6	14000	2000	-55~85℃
