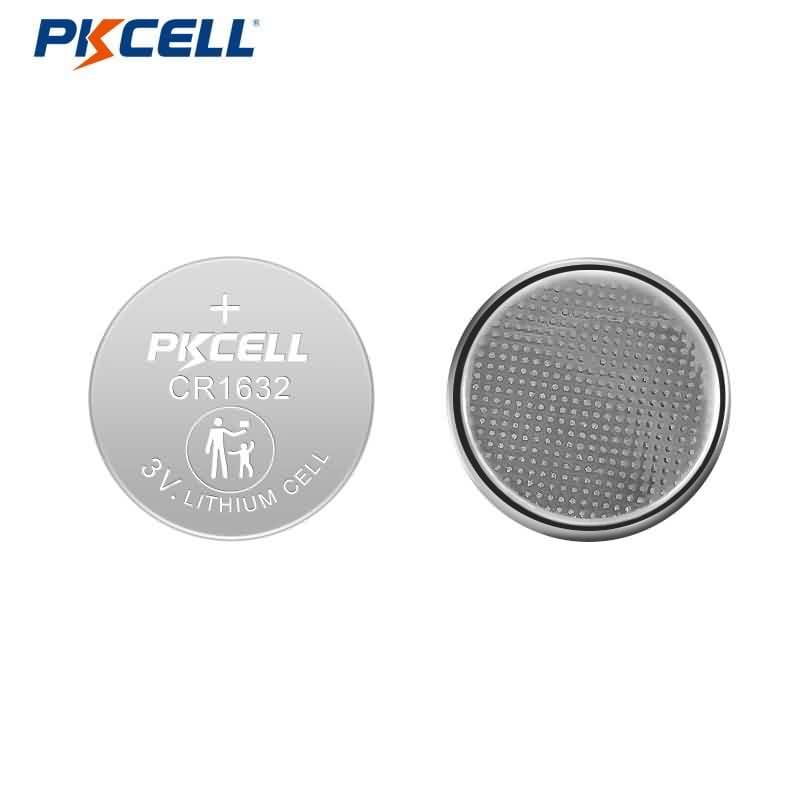

3V CR1632 Lithium Button Cell Battery (120mAh) | PKCELL
Short Description:
With 20+ Years of Experience, Pkcell has become a leading Li-Socl2 Battery manufacturer, Specializing in producing the CR1632 3V battery.
Dimension: 16.0*3.0 mm
Weight: 1.3 g
Self-Discharge Rate (Year): <1%
Shelf Life: >5 Years
Operating Temperature: -20~60 °C (A wide temperature version (-40~85 °C) is also available for demanding applications）
Recommend Constant Current: 2.0 mA
Recommend Pulse Current: 15 mA
Applications: Watches, Lasers, LED tea lights, Vibes, Calculators, Car remote controls, Toys, etc.
CR1623 Equivalent: DL1623,ECR1623,BR1623,LM1623, KCR1623
Certification
Certified By IEC, SNI, BSCI, and More, Ensuring Top-Notch Quality and Safety.
Understanding CR1632 Battery
The CR1632 lithium 3v battery is small and shaped like a coin, so it is also called a coin cell. It gives a steady voltage of 3V and has a diameter of 16mm. This makes it good for use in small electronics, like car remotes or medical monitors that require the CR series batteries. The CR 1632 battery is light and fits easily in small spaces. The battery offers a good amount of voltage and sends power well, so people can trust it in their electric items.
Key Features of Pkcell CR1632
-
Environmentally Friendly, Lightweight
- High Density of Energy
- Low Self-discharge
- Low Internal Resistance
- No Memory Effect
- Free of Mercury
- Safety Assurance: No fire, No Explosion, No Leakage
Main Applications of Pkcell CR1632
- Watches
- Car Remote Keys
- Computer CMOS
- Medical Devices
- Memory Backup
- Wireless Sensors
- Electronic Toys
Specification Of Other LiMnO2 Button Cell Battery
| Model | Normal Voltage (V) | Capacity (mAH) | Dimension(mm) | Weight (g) |
|---|---|---|---|---|
| CR927 | 3.0 | 30 | 9.5×2.7 | 0.6 |
| CR1216 | 3.0 | 25 | 12.5×1.6 | 0.7 |
| CR1220 | 3.0 | 40 | 12.5×2.0 | 0.9 |
| CR1225 | 3.0 | 50 | 12.5×2.5 | 1.0 |
| CR1616 | 3.0 | 50 | 16.0×1.6 | 1.2 |
| CR1620 | 3.0 | 70 | 16.0×2.0 | 1.6 |
| CR1632 | 3.0 | 120 | 16.0×3.2 | 1.3 |
| CR2016 | 3.0 | 75 | 20.0×1.6 | 1.8 |
| CR2025 | 3.0 | 150 | 20.0×2.5 | 2.4 |
| CR2032 | 3.0 | 210 | 20.0×3.2 | 3.0 |
| CR2032 | 3.0 | 220 | 20.0×3.2 | 3.1 |
| CR2050 | 3.0 | 150 | 20.0×2.5 | 2.4 |
| CR2320 | 3.0 | 130 | 23.0×2.0 | 3.0 |
| CR2325 | 3.0 | 190 | 23.0×2.5 | 3.5 |
| CR2330 | 3.0 | 260 | 23.0×3.0 | 4.0 |
| CR2430 | 3.0 | 270 | 24.5×3.0 | 4.5 |
| CR2450 | 3.0 | 600 | 24.5×5.0 | 6.2 |
| CR2477 | 3.0 | 900 | 24.5×7.7 | 7.0 |
| CR3032 | 3.0 | 500 | 30.0×3.2 | 6.8 |
More Than Just Individual Cells - We Also Offer Button Cell Batteries with Different Terminations
Why Choose Pkcell Battery?
Typical Discharge Characteristics
Warning:
- Do not short-circuit, recharge, heat, disassemble
- Do not force-discharge
- Do not make the anode and the cathode reversed
- Do not solder directly
Frequently Asked About CR1632 LiMnO2 Button Cell Battery
- Lead Time: Standard samples typically arrive in 7-12 days. Formal orders usually take around 25 days, though smaller quantities might ship faster, potentially within 15-18 days.
- Payment Methods: We accept various payment types, including T/T (Telegraphic Transfer), L/C (Letter of Credit), and PayPal.
- Shipping: We offer flexibility! Depending on your needs and location, we can ship your order via air freight (using carriers like FEDEX, DHL, UPS, EMS, etc.) or via sea freight.
- Delivery Terms: We can work with several common international shipping terms, including EXW, FCA, FOB, CFR, and DDU.
We have a minimum order value of USD $500. The actual quantity you receive depends on the unit price of the specific batteries you choose. Absolutely! We understand you need to test our products. We're happy to provide samples for your evaluation before you place a formal order.
Yes, we support the customization of CR cell batteries for product integration. This includes adding solder tabs and pins according to your specific requirements.
This is a very common question, and the key difference is their physical size, which directly impacts their capacity and compatibility.
- Diameter: The CR1632 is much smaller at 16mm vs. the CR2032 and CR2025, which are both 20mm in diameter.
- Thickness: The CR1632 and CR2032 share the same thickness at 3.2mm, while the CR2025 is slightly thinner at 2.5mm.
- Capacity: The CR1632 has a lower capacity than both the CR2032 and CR2025 due to its smaller diameter.
Because of these size differences, they are not interchangeable. A CR1632 will be too small to make contact in a CR2032 or CR2025 compartment.
Due to its unique combination of diameter (16mm) and thickness (3.2mm), there are no direct drop-in equivalents for the CR1632. Other batteries may have a similar voltage and thickness, but their different diameters mean they will not fit correctly in the battery holder. For the safety of your device, you should always replace a CR1632 with another CR1632 battery. Some manufacturers may use the designation DL1632 or BR1632, which are cross-references but are still the same physical size.
No, the CR1632 is a primary (non-rechargeable) battery. It is designed for single use only, and attempting to recharge it is extremely dangerous. Recharging can lead to severe safety hazards, including internal short-circuits, leakage, overheating, rupture, or fire. Always replace a depleted CR1632 battery with a new one.

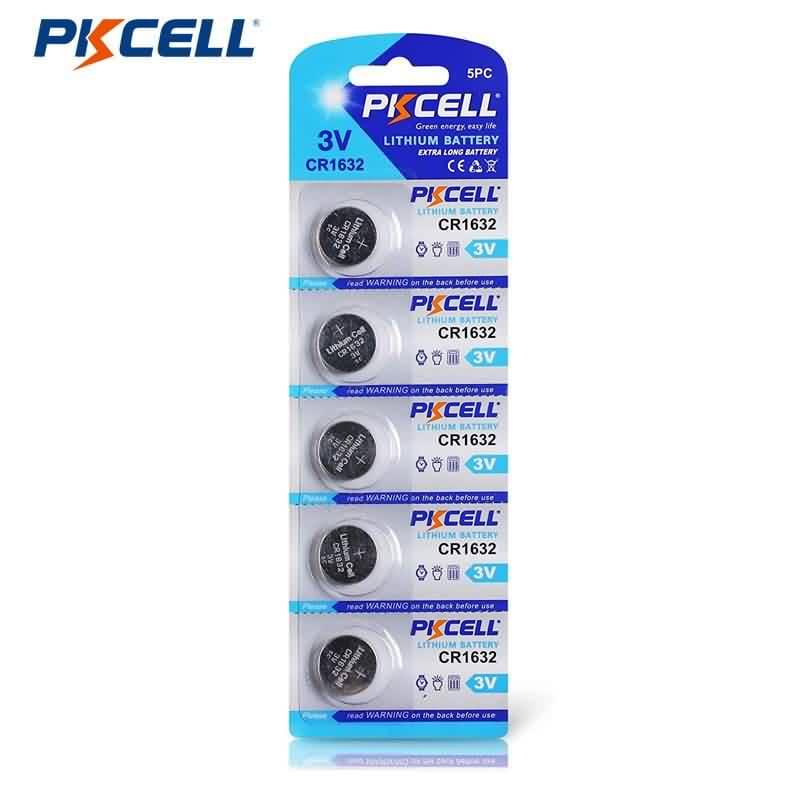

Common packaging options include blister cards (available in 1-battery, 2-battery, 5-battery packs). We also support 8-battery and 10-battery blister cards. We are open to discussing and designing the blister card packaging together.
