Item | Condition | Test Temperature | Characteristic | |
---|---|---|---|---|
Open circuit voltage | No load | 23°C±3°C | 3.05–3.45V | |
3.05–3.45V | ||||
Load voltage | 47kΩ, after 5s | 23°C±3°C | 3.00–3.45V | |
3.00–3.45V | ||||
Discharge Capacity | Continually discharge at 47kΩ resistance to cut-off voltage 2.0V | 23°C±3°C | Normal | 480h |
The lowest | 430h |
Warnings and Cautions:
1.Do not short circuited, recharge, heat, disassemble nor dispose in fire
2.Do not force-discharge.
3.Do not make the anode and the cathode reversed
4.Do not solder directly
Item No. | System | Normal Voltage (V) | Capacity (mAH) | Dimension(mm) | Weight (g) |
CR927 | Lithium | 3.0 | 30 | 9.5×2.7 | 0.6 |
CR1216 | Lithium | 3.0 | 25 | 12.5×1.6 | 0.7 |
CR1220 | Lithium | 3.0 | 40 | 12.5×2.0 | 0.9 |
CR1225 | Lithium | 3.0 | 50 | 12.5×2.5 | 1.0 |

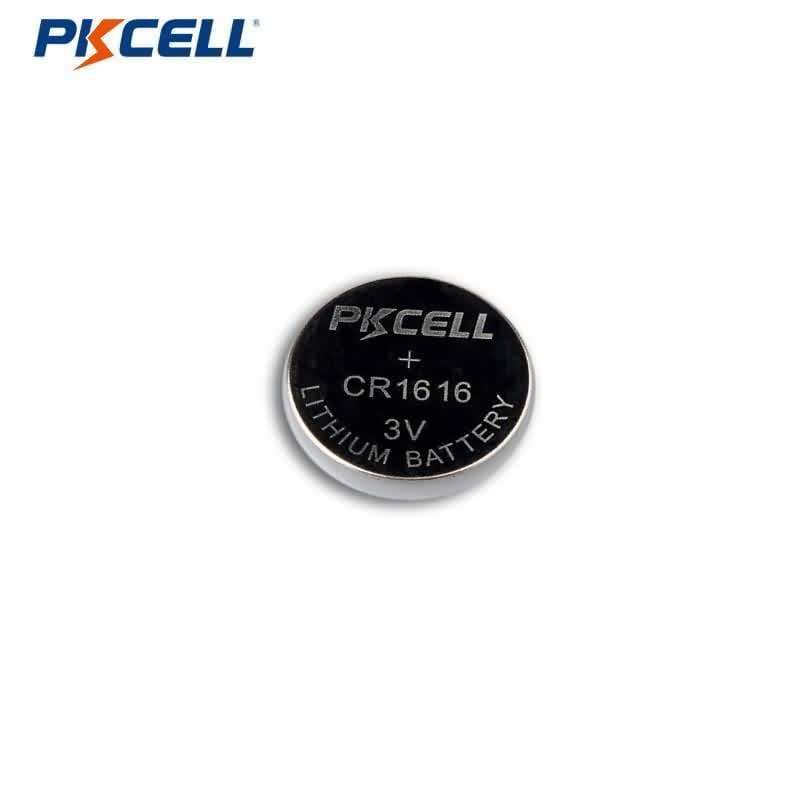

CR1616 | Lithium | 3.0 | 50 | 16.0×1.6 | 1.2 |
CR1620 | Lithium | 3.0 | 70 | 16.0×2.0 | 1.6 |
CR1632 | Lithium | 3.0 | 120 | 16.0×3.2 | 1.3 |
CR2016 | Lithium | 3.0 | 75 | 20.0×1.6 | 1.8 |
CR2025 | Lithium | 3.0 | 150 | 20.0×2.5 | 2.4 |
CR2032 | Lithium | 3.0 | 210 | 20.0×3.2 | 3.0 |
CR2032 | Lithium | 3.0 | 220 | 20.0×3.2 | 3.1 |
CR2050 | Lithium | 3.0 | 150 | 20.0×2.5 | 2.4 |
CR2320 | Lithium | 3.0 | 130 | 23.0×2.0 | 3.0 |
CR2325 | Lithium | 3.0 | 190 | 23.0×2.5 | 3.5 |
CR2330 | Lithium | 3.0 | 260 | 23.0×3.0 | 4.0 |
CR2430 | Lithium | 3.0 | 270 | 24.5×3.0 | 4.5 |
CR2450 | Lithium | 3.0 | 600 | 24.5×5.0 | 6.2 |
CR2477 | Lithium | 3.0 | 900 | 24.5×7.7 | 7.0 |
CR3032 | Lithium | 3.0 | 500 | 30.0×3.2 | 6.8 |
