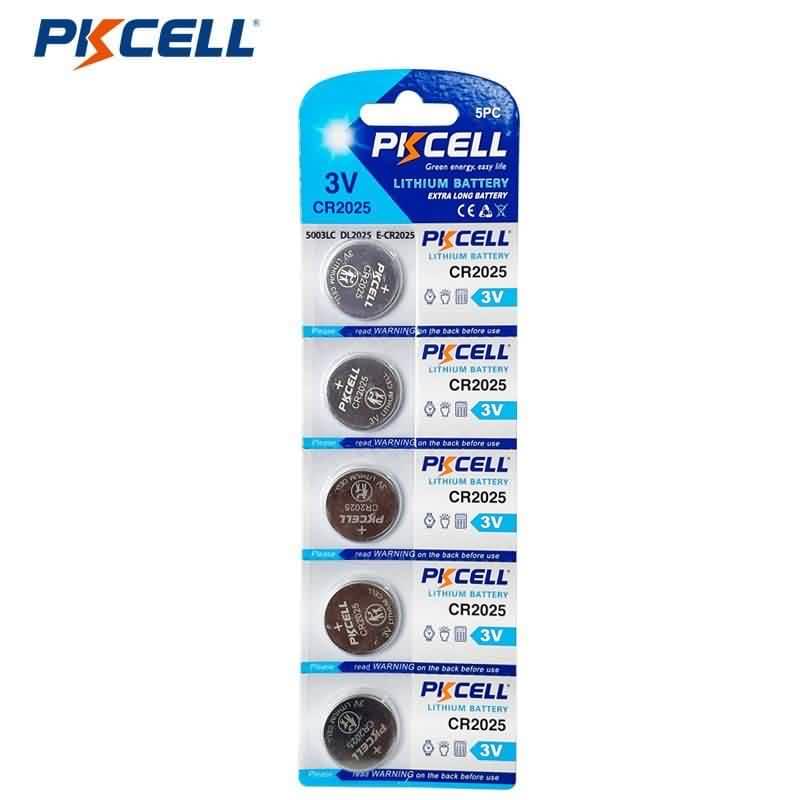

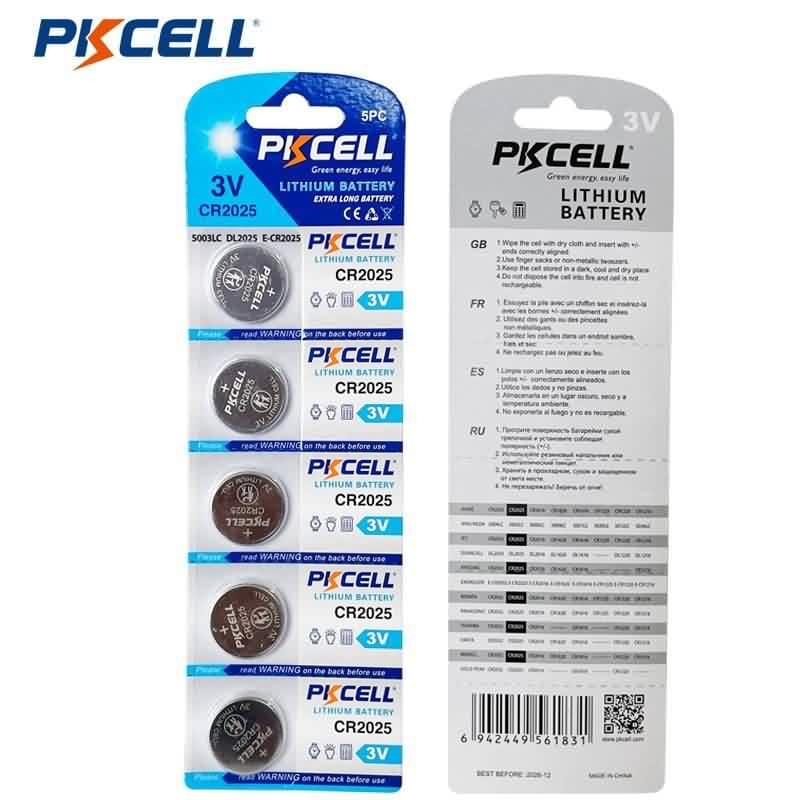

3V CR2025 Lithium Button Cell Battery (150mAh) | PKCELL

Short Description:

With 20+ Years of Experience, Pkcell has become a leading Li-Socl2 Battery manufacturer, Specializing in producing the CR2025 3v battery.


Dimension: 20*2.5 mm

Weight: 2.0 g

Self-Discharge Rate (Year): <1%

Shelf Life: >5 Years

Operating Temperature: -20~60 °C (A wide temperature version (-40~85 °C) is also available for demanding applications)

Recommend Constant Current: 2 mA

Recommend Pulse Current: 15 mA

Applications Watches, Lasers, LED tea lights, Vibes, Calculators, Car remote controls, Toys, etc.

CR2025 is the replacement for 5003LC, BR2025, CR2025, DL2025, ECR2025, KCR2025, KECR2025.


Certification

Certified By IEC, SNI, BSCI, and More, Ensuring Top-Notch Quality and Safety.

PKcell Certification




Product Detail

Product Tags

Understanding CR2025 Battery

The 2025 battery is a small, round, 3-volt lithium battery. It is part of the CR series. This battery is often used in small electronic devices that need a steady power source. The name CR2025 comes from its size. It has a diameter of 20 millimeters and a thickness of 2.5 millimeters. This button battery CR2025 can not be recharged, but it has high energy and stays stable. It is popular in devices like car key fobs, calculators, wristwatches, and medical tools. People like the CR 2025 3 volt battery because it is reliable and works well at home.

Key Features of Pkcell CR2025



  • Environmentally Friendly, Lightweight
  • High Density of Energy
  • Low Self-discharge
  • Low Internal Resistance
  • No Memory Effect
  • Free of Mercury
  • Safety Assurance: No fire, No Explosion, No Leakage

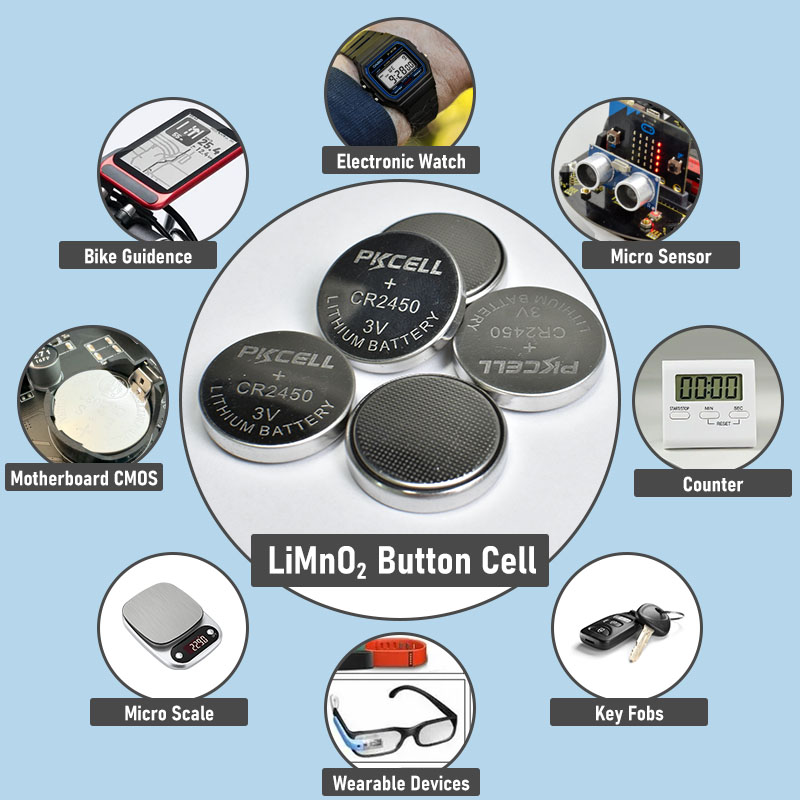

 Main Applications of Pkcell CR2025



  • Watches
  • Car Remote Keys
  • Computer CMOS
  • Medical Devices
  • Memory Backup
  • Wireless Sensors
  • Electronic Toys

Specification Of Other LiMnO2 Button Cell Battery



Model Normal Voltage (V) Capacity (mAH) Dimension(mm) Weight (g)
CR927 3.0 30 9.5×2.7 0.6
CR1216 3.0 25 12.5×1.6 0.7
CR1220 3.0 40 12.5×2.0 0.9
CR1225 3.0 50 12.5×2.5 1.0
CR1616 3.0 50 16.0×1.6 1.2
CR1620 3.0 70 16.0×2.0 1.6
CR1632 3.0 120 16.0×3.2 1.3
CR2016 3.0 75 20.0×1.6 1.8
CR2025 3.0 150 20.0×2.5 2.4
CR2032 3.0 210 20.0×3.2 3.0
CR2032 3.0 220 20.0×3.2 3.1
CR2050 3.0 150 20.0×2.5 2.4
CR2320 3.0 130 23.0×2.0 3.0
CR2325 3.0 190 23.0×2.5 3.5
CR2330 3.0 260 23.0×3.0 4.0
CR2430 3.0 270 24.5×3.0 4.5
CR2450 3.0 600 24.5×5.0 6.2
CR2477 3.0 900 24.5×7.7 7.0
CR3032 3.0 500 30.0×3.2 6.8

More Than Just Individual Cells - We Also Offer Button Cell Batteries with Different Terminations



different button cell battery terminations

Why Choose Pkcell Battery?

Decades Proven Expertise

20 years in battery manufacturing. Trusted by global brands and customers in 100+ countries.

Global Reach

Experienced exporter to 100+ countries. Offering flexible Air/Sea shipping and delivery terms.

Flexible Partnership

Flexible Formal Order MOQ (from $500) and samples available. Partnering with you from design to delivery.

Certified Quality

Strict QC in our 28,000 ㎡ facility. IEC, CE, RoHS certified for reliable performance.

Expert Support

Dedicated technical team with deep Lithium battery knowledge, ready to support your integration.

Custom Solutions

50+ R&D experts design tailored battery packs and solutions for your unique needs.

Typical Discharge Characteristics

扣式电池充放电曲线图

Warning:

  • Do not short-circuit, recharge, heat, disassemble
  • Do not force-discharge
  • Do not make the anode and the cathode reversed
  • Do not solder directly

Frequently Asked About CR2025 LiMnO2 Button Cell Battery

How long will my order take, how can I pay, and what are the shipping options?



  • Lead Time:  Standard samples typically arrive in 7-12 days. Formal orders usually take around 25 days, though smaller quantities might ship faster, potentially within 15-18 days.
  • Payment Methods:  We accept various payment types, including T/T (Telegraphic Transfer), L/C (Letter of Credit), and PayPal.
  • Shipping:  We offer flexibility! Depending on your needs and location, we can ship your order via air freight (using carriers like FEDEX, DHL, UPS, EMS, etc.) or via sea freight.
  • Delivery Terms:  We can work with several common international shipping terms, including EXW, FCA, FOB, CFR, and DDU.



What is your minimum order quantity (MOQ), and can I get samples first?

We have a minimum order value of USD $500. The actual quantity you receive depends on the unit price of the specific batteries you choose. Absolutely! We understand you need to test our products. We're happy to provide samples for your evaluation before you place a formal order.

What technical information do you need from me to determine the best battery for my product?

We must understand your product's specific usage scenario to recommend the most suitable battery, including the required dimensions, operating temperature range, and the typical/maximum operating current.

How does the CR2025 compare to a CR2016 and a CR2032?



This is a very common point of confusion, and the difference is entirely based on their thickness and resulting capacity. All three batteries share the same 20mm diameter and a 3V voltage, but they are not interchangeable.



  • CR2016: 1.6mm thick (lowest capacity).
  • CR2025: 2.5mm thick (medium capacity).
  • CR2032: 3.2mm thick (highest capacity). Using a battery with the wrong thickness will either prevent it from fitting in the compartment or result in a poor electrical connection. Always use the exact model number your device specifies.
Can I use another battery as a direct replacement for a CR2025?

Due to its unique combination of diameter (20mm) and thickness (2.5mm), there are no direct drop-in replacements that differ in size. However, you may see other designations like DL2025 or ECR2025. These are simply cross-references used by different battery manufacturers for the exact same size and voltage battery, so they are perfectly interchangeable with a standard CR2025.

Is it possible to recharge a CR2025 battery?

No, it is not. The CR2025 is a primary (non-rechargeable) battery and is not designed to be charged. Attempting to do so is extremely dangerous and could lead to a serious safety incident, such as the battery leaking, overheating, or even exploding. Once a CR2025 has been depleted, it must be properly disposed of and replaced with a new one.

What are the essential safety precautions for CR2025 batteries



All coin cell batteries, including the CR2025, require careful handling. The most critical precaution is to keep them out of reach of children and pets, as they pose a serious ingestion hazard. Additionally:



  • Never attempt to recharge the battery.
  • Do not short-circuit the terminals.
  • Avoid exposing the battery to fire, extreme heat, or moisture.
  • Always dispose of used or damaged batteries responsibly according to your local regulations.
