3V CR2325 Lithium Button Cell Battery (190mAh) supplier | PKCELL
Short Description:
With 20+ Years of Experience, Pkcell has become a leading Button Cell Battery manufacturer, Specializing in producing the CR2325 battery.
Dimension: 23.0*2.5 mm
Weight: 3.5 g
Self-Discharge Rate (Year): <1%
Shelf Life: >5 Years
Operating Temperature: -20~60 °C (A wide temperature version (-40~85 °C) is also available for demanding applications）
Recommend Constant Current: 3.0 mA
Recommend Pulse Current: 20 mA
Applications: Watches, Lasers, LED tea lights, Vibes, Calculators, Car remote controls, Toys, etc.
CR2325 Equivalent: DL2325,ECR2325,BR2325,LM2325, KCR2325
Certification
Certified By IEC, SNI, BSCI, and More, Ensuring Top-Notch Quality and Safety.
Understand CR2325 Battery
The CR2325 lithium battery is an important power source for many electronic devices. This lithium battery is made to give strong performance and last a long time. It works well in a lot of things, from small gadgets to more complex electronics. Coin cell like the CR 2325 batteries are well-known because they are small, but they also have good battery life. That is why they are now a top pick for people who need a steady energy supply.
Key Features of Pkcell CR2325
-
Environmentally Friendly, Lightweight
- High Density of Energy
- Low Self-discharge
- Low Internal Resistance
- No Memory Effect
- Free of Mercury
- Safety Assurance: No fire, No Explosion, No Leakage
Main Applications of Pkcell CR2325
- Watches
- Car Remote Keys
- Computer CMOS
- Medical Devices
- Memory Backup
- Wireless Sensors
- Electronic Toys
Specification Of Other LiMnO2 Button Cell Battery
| Model | Normal Voltage (V) | Capacity (mAH) | Dimension(mm) | Weight (g) |
|---|---|---|---|---|
| CR927 | 3.0 | 30 | 9.5×2.7 | 0.6 |
| CR1216 | 3.0 | 25 | 12.5×1.6 | 0.7 |
| CR1220 | 3.0 | 40 | 12.5×2.0 | 0.9 |
| CR1225 | 3.0 | 50 | 12.5×2.5 | 1.0 |
| CR1616 | 3.0 | 50 | 16.0×1.6 | 1.2 |
| CR1620 | 3.0 | 70 | 16.0×2.0 | 1.6 |
| CR1632 | 3.0 | 120 | 16.0×3.2 | 1.3 |
| CR2016 | 3.0 | 75 | 20.0×1.6 | 1.8 |
| CR2025 | 3.0 | 150 | 20.0×2.5 | 2.4 |
| CR2032 | 3.0 | 210 | 20.0×3.2 | 3.0 |
| CR2032 | 3.0 | 220 | 20.0×3.2 | 3.1 |
| CR2050 | 3.0 | 150 | 20.0×2.5 | 2.4 |
| CR2320 | 3.0 | 130 | 23.0×2.0 | 3.0 |
| CR2325 | 3.0 | 190 | 23.0×2.5 | 3.5 |
| CR2330 | 3.0 | 260 | 23.0×3.0 | 4.0 |
| CR2430 | 3.0 | 270 | 24.5×3.0 | 4.5 |
| CR2450 | 3.0 | 600 | 24.5×5.0 | 6.2 |
| CR2477 | 3.0 | 900 | 24.5×7.7 | 7.0 |
| CR3032 | 3.0 | 500 | 30.0×3.2 | 6.8 |
More Than Just Individual Cells - We Also Offer Button Cell Batteries with Different Terminations
Why Choose Pkcell Battery?

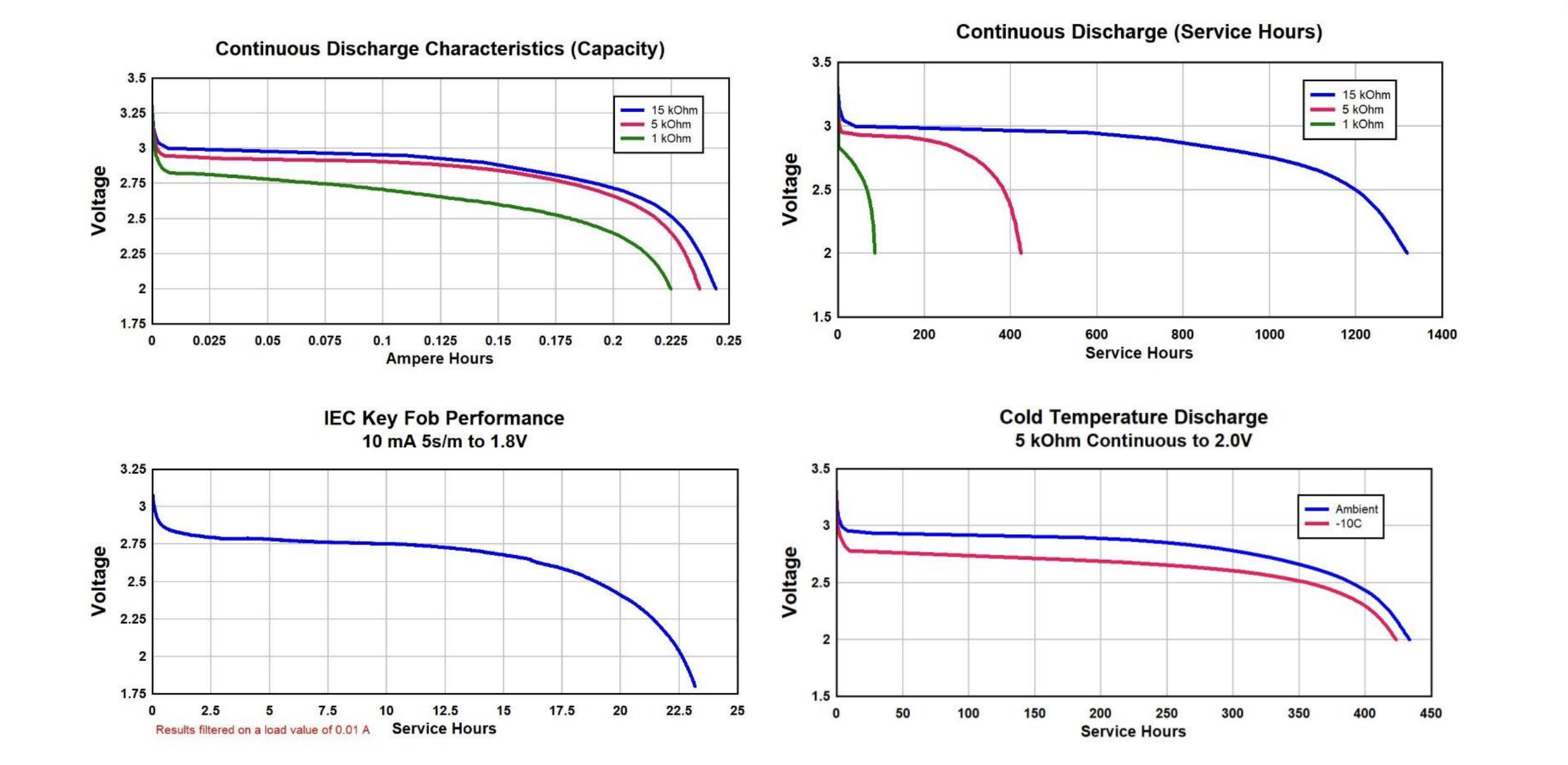

Typical Discharge Characteristics
Warning:
- Do not short-circuit, recharge, heat, disassemble
- Do not force-discharge
- Do not make the anode and the cathode reversed
- Do not solder directly
Frequently Asked About CR2325 LiMnO2 Button Cell Battery
- Lead Time: Standard samples typically arrive in 7-12 days. Formal orders usually take around 25 days, though smaller quantities might ship faster, potentially within 15-18 days.
- Payment Methods: We accept various payment types, including T/T (Telegraphic Transfer), L/C (Letter of Credit), and PayPal.
- Shipping: We offer flexibility! Depending on your needs and location, we can ship your order via air freight (using carriers like FEDEX, DHL, UPS, EMS, etc.) or via sea freight.
- Delivery Terms: We can work with several common international shipping terms, including EXW, FCA, FOB, CFR, and DDU.
We have a minimum order value of USD $500. The actual quantity you receive depends on the unit price of the specific batteries you choose. Absolutely! We understand you need to test our products. We're happy to provide samples for your evaluation before you place a formal order.
We must understand your product's specific usage scenario to recommend the most suitable battery, including the required dimensions, operating temperature range, and the typical/maximum operating current.
Yes, we support the customization of CR cell batteries for product integration. This includes adding solder tabs and pins according to your specific requirements.
No, the CR2325 is a primary (non-rechargeable) battery. It is designed for single use only, and attempting to recharge it is extremely dangerous. Recharging can lead to severe safety hazards, including internal short-circuits, leakage, overheating, rupture, or fire. Always replace a depleted CR2325 battery with a new one.
Due to its unique combination of diameter (23mm) and thickness (2.5mm), there are no direct drop-in equivalents for the CR2325. Other batteries may have a similar voltage, but their different diameters or thicknesses mean they will not fit correctly in the battery holder. For the safety of your device, you should always replace a CR2325 with another CR2325 battery. Some manufacturers use the designation DL2325 or BR2325, which are cross-references but are still the same physical size.
This is a very common question, and the key differences are their physical size, which directly impacts their capacity and compatibility.
- Diameter: The CR2325 is wider at 23mm vs. the CR2032 at 20mm.
- Thickness: The CR2325 is flatter at 2.5mm vs. the CR2032 at 3.2mm.
- Capacity: The CR2032 has a higher capacity (around 225mAh) than the CR2325 (around 190mAh) due to its greater thickness.
Because of these size differences, they are not interchangeable. A CR2325 will be too small for a CR2032 compartment and won't make a reliable connection, and a CR2032 will be too thick to fit in a device designed for a CR2325.
