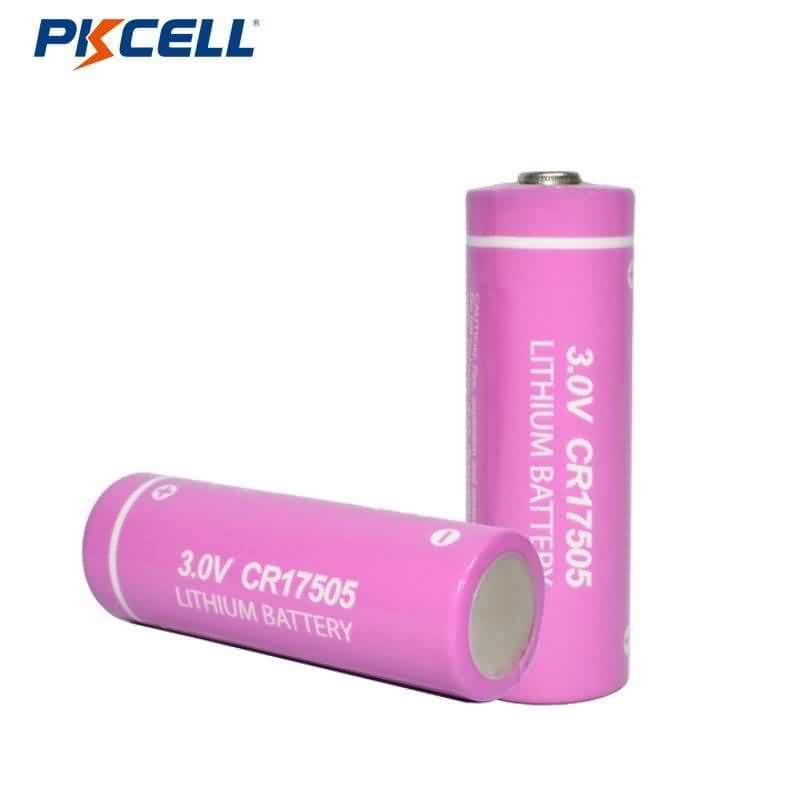

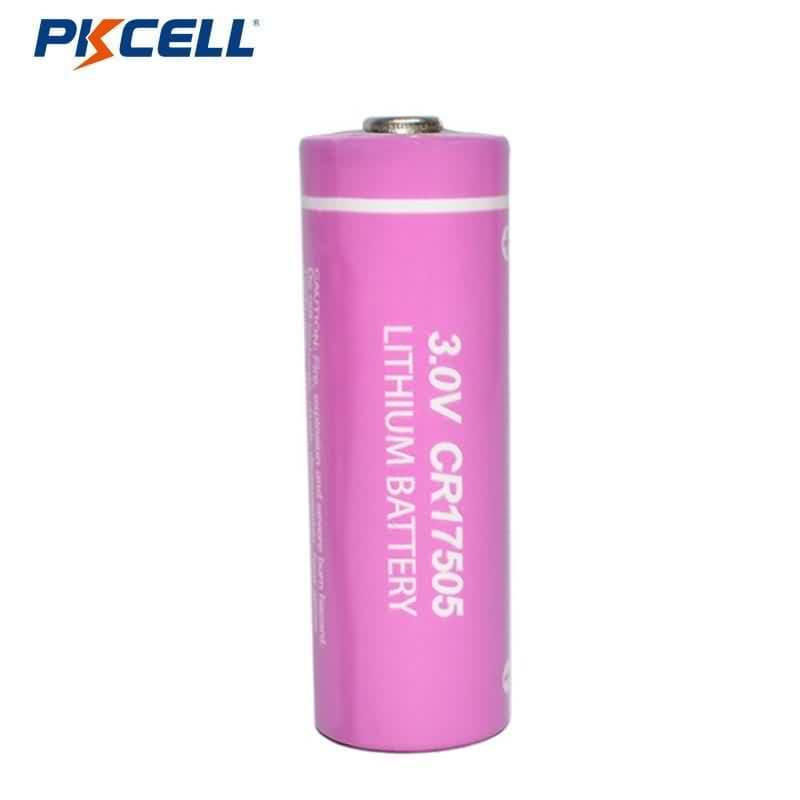

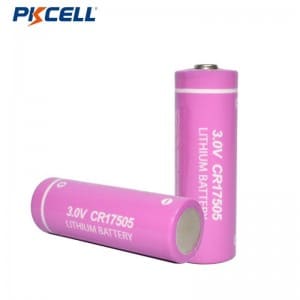

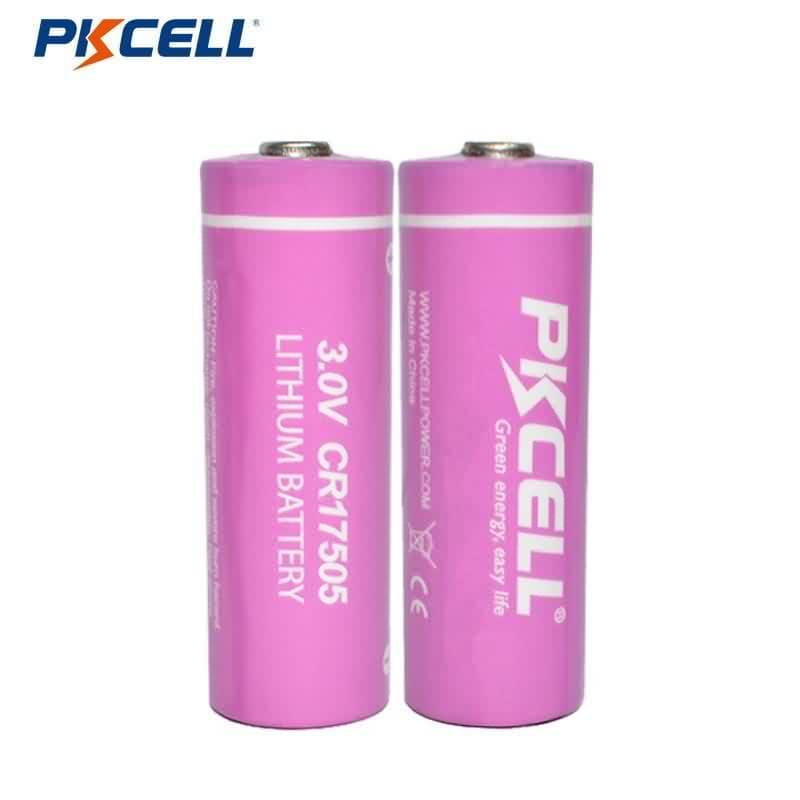

PKCELL CR17505 3V 2300mAh LI-MnO2 Battery Factory

Short Description:

  • Nominal Voltage (V): 3.0
  • Max. Dimensions (mm× mm): φ 17.5× 50.5
  • Weight(g): 28
  • Standard Capacity Current (mAh): 2300mAh
  • Continuous Discharge Current (mA): 10mA to 2.0V at 20 ± 3°C
  • Operating Temperature (° C): -40~+85°C
  • Max Constant Current: 1500mA
  • Max Pulse Current: 3000mA


Product Detail

Product Tags

PKCELL CR17505 3V 2300mAh LI-MnO2 Battery Applications:

1. Memory backup: CMOS memory, RTC(real time clock) and computer backup.
2. AMR utility meters: Electricity meter, gas meter and water meter etc.
3. Wireless alarm sensors: Smoke alarm systems, temperature monitors etc.
4. Remote monitor systems: GPS, sea buoys, lifejacket lights, lifecraft lights, cargo-locating systems etc.
5. Automotive and electronics: Automotive security systems, tire-pressure monitoring systems etc.
6. Electronics toll tags: Toll gates.
7. Military electronics: Radio communication, night vision equipment, tracking and positioning systems etc.

Advantages:

1. High energy density
2. High open circuit voltage
3. Wide range of operating temperature
4. Stable operating voltage and current
5. Long operating time
6. Low self-discharge rate (less than 1% per year at 25ºC)

PKCELL CR17505 3V 2300mAh LI-MnO2 Battery Specifications

Cylindrical Li/MnO2 Battery
Model Nominal
Voltage
(V)
Nominal
Capacity
(mAh)
Standard
Discharge
current(mA)
End
Voltage
(V)
Max.
Diameter
(mm)
Max.
Height
(mm)
Reference
Weight
(g)
TestTemperature
(°C)
CR17345(CR123A) 3v 1500.0  10 2 17.0  34.5  16 23±3
CR15H270(CR2) 3v 850.0  10 2 15.6  27.0  11 23±3
CR17335 3v 1500.0  10 2 17.0  33.5  16 23±3
CR14250 3v 650.0  10 2 14.5  25.0  10 23±3
CR14505 3v 1400.0  10 2 14.5  50.5  17 23±3
CR14335 3v 800.0  10 2 14.5  33.5  13 23±3
CR17450 3v 2000.0  10 2 17.0  45.0  25 23±3
CR17450 3v 2400.0  10 2 17.0  45.0  25 23±3
CR17505 3v 2300.0  10 2 17.0  50.5  28 23±3
CR17505 3v 2700.0  10 2 17.0  50.5  28 23±3
CR18505 3v 2500 10 2 18.5 50.5 35 20±3
CR11108(CR1/3N) 3v 160.0  1 2 11.6  10.8  3.3 23±3
CR-V3 6v 3000.0  20 2 29X14.5X52 34 23±3
CR9V 9v 1200 1 5.4v 48.5X36.5X17.5 29 23±2
CR26500 3v 5400 10 2 26.5 50.5 62 20±3
CR34615 3v 12000 10 2 34 61.5 125 20±3
CR-P2 6v 1400.0  10 4 34.8X35.8X19.5 34 23±3
2CR5 6v 1400.0  10 4 34X45X17 34 23±3
