Key Highlights
- The ER17335 battery uses lithium thionyl chloride chemistry, so it can hold a high energy level.
- This battery has a small 2/3A size, and its 2100mAh capacity works well for devices where there is not much space.
- You can use it in many places, as it runs fine in a wide temperature range, from as cold as -55°C up to as hot as +85°C. This is good for tough environments.
- The battery is made for low self-discharge, so when you store it the right way, it can last on the shelf for up to 10 years.
Introduction: What is ER17335 Lithium Battery?
The ER17335 lithium battery uses lithium thionyl chloride for its power. It gives high energy with steady performance in many types of devices. This battery puts out a regular voltage of 3.6V and has a 2,100mAh power storage. It is made for devices that do not use much power.
You can use this lithium battery in places with very hot or cold temperatures. It also lasts a long time before it gets old or used up. These features make it a good pick for jobs in factories and for IoT devices. If you need high energy and a battery that works for a long time, this is a great choice.
ER17335 Battery Specifications and Technical Datasheet
The ER17335 battery is recognized for its compact size and robust specifications. Its bobbin structure is engineered to support low-power applications with a nominal voltage of 3.6V. The battery’s 2100mAh capacity ensures a prolonged operational lifespan, reducing the need for frequent replacements. Furthermore, it boasts a wide operating temperature range from -55°C to +85°C, making it ideal for harsh industrial setups. Below is a table showing ER17335 technical specifications:
| Specification | Details |
|---|---|
| Voltage | 3.6V |
| Capacity | 2100mAh |
| Operating Temperature | -55°C to +85°C |
| Standard Discharge | 1mA |
| Dimensions | 17mm x 33.5mm |
| Certifications | RoHS, UL, IEC, UN 38.3 |
These features ensure the ER17335 3.6V lithium battery delivers consistent performance across a variety of IoT and industrial systems, whether for alarms, wireless networks, or measuring devices. If you want to learn more about this battery, you can download the ER17335 datasheet here.

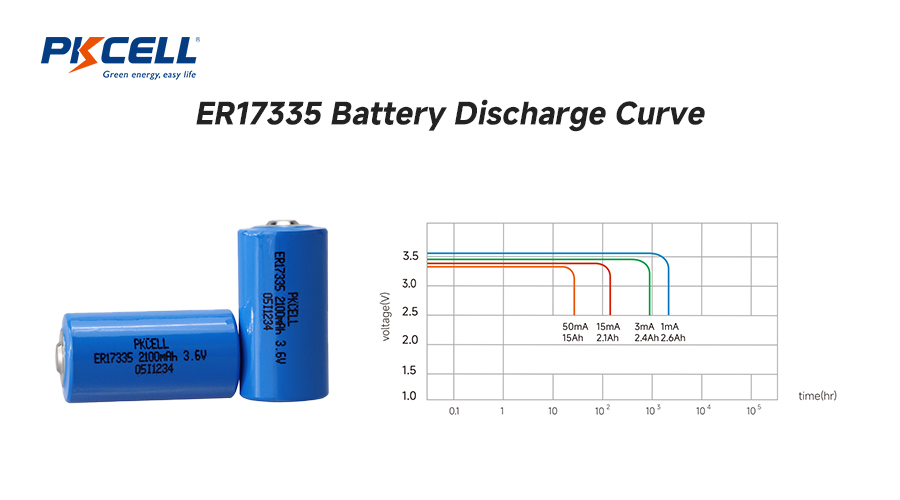

ER17335 Discharge Curves
Key Features of the ER17335 Battery
High Energy Density and Long Life
At the heart of the ER17335 battery is its high energy level. This battery can hold a lot of power in a small space. It gives long-lasting power, which is great for systems that run for a long time and do not need much maintenance. The battery deals with passivation well, so it gives back energy right away when you need it.
Also, the way this battery is built stops energy loss, so it works well even if you store it for a long time. The steady power you get is important for things like utility meters and GPS trackers, where it must work well at all times. This makes the ER17335 battery with its high energy stand out for these jobs.
Wide Operating Temperature Range
One of the key strengths of the ER17335 battery is that it can work well in many temperatures. It works from as low as -55°C up to +85°C. This makes it good for devices used outside or in factories, where the temperature goes up and down a lot.
The lithium thionyl chloride used in this battery helps keep the discharge rate the same the whole time. If you use the ER17335 lithium battery in IoT setups or on machines that face many weather changes, you can count on it to keep working well.
Applications of ER17335 in Industrial and IoT Devices
Industrial Automation and Smart Metering
The ER17335 battery is important for the work of industrial automation and smart metering. This battery is made from lithium. It gives out a steady discharge rate. Because of this, things like flow meters or programmable logic controllers keep working without stopping. That helps monitoring and sending data work well in all kinds of industrial places.
In smart metering, the ER17335 battery gives power to devices that measure water, gas, or electricity. It keeps giving enough energy over time, so you get the right data. This helps utility companies make sure you are billed the right way and that resources are managed well.
Remote Monitoring and Wireless Sensor Networks
The ER17335 battery is changing the way people use remote monitoring and wireless sensor networks (WSNs). It has a low and steady discharge rate, and the battery is small. This lets it give constant power to sensors, even in places that are hard to get to. The ER17335 makes it possible to collect data for a long time and helps to lower the need for people to check these devices.
In remote asset tracking systems, this battery keeps running in GPS devices, letting people always get important location data. For WSNs, the ER17335 supports strong and steady connections between devices. This is just what smart agriculture, industrial IoT, and other remote areas need.
ER17335 vs Similar Battery Models
When selecting a LiSoCl2 battery for your device, you may see batteries like LS17330, TL-5902, or other equivalents. Although these batteries share a similar size and chemistry, there are subtle but important differences that can impact your application’s performance.
Below is a comparison table to help clarify the distinctions:
| Model | Nominal Voltage | Capacity (mAh) | Max Pulse Current | Size Format | Notes |
|---|---|---|---|---|---|
| ER173359 (PKcell) | 3.6V | ~2100 | Up to 200mA | 2/3 A | Excellent balance of energy and current handling |
| LS17330 (Saft) | 3.6V | ~2100 | ~50–100mA | 2/3 A | Slightly higher capacity; lower pulse rating |
| TL-5902 (Tadiran) | 3.6V | ~2400 | ~100mA | 2/3 A | High energy density; limited in high-drain usage |
When to choose ER17335 over alternatives?
If your application involves moderate pulse current demand (e.g., wireless data transmission, sensor bursts, brief device wake-ups), the PKCELL ER17335 is a reliable choice. It offers a balanced capacity and pulse performance while maintaining long shelf life and robust operation in wide temperature ranges. It’s also available in multiple configurations (e.g., with axial leads or tabs), making it flexible for OEM integration.
Equivalent models across brands include:
- Saft LS17330
- Tadiran TL-5902
- EVE ER17335
- PKCELL ER17335 / ER17335M
If you’re replacing an existing battery or looking to qualify a drop-in alternative, ER17335 is fully compatible with most devices designed for 2/3A lithium cells. Always check the pulse current and termination specs to ensure optimal performance.
How to Source ER17335 Batteries for Manufacturing or Maintenance
Getting top-quality ER17335 batteries is important if you want your equipment to last long. You should look for battery suppliers you can trust. Check if they offer product certifications like UL and RoHS. These add safety for you and your devices.
When you need to take care of your batteries or swap them out, pick suppliers who give technical help and guarantee the products are real. This not only protects your equipment but also helps you save money by using good products you can count on.
Why Choose PKCELL as Your ER17335 Battery Supplier?
PKCELL is a trusted supplier for ER17335 batteries. We have a lot of experience in the industry and are known for quality and reliability. You can see why many people choose PKCELL:
- Guaranteed product certifications: Our batteries meet UL, RoHS, and UN 38.3 standards.
- Strong customer support: The team offers help for custom requests and bulk orders.
PKCELL offers new solutions and keeps giving steady energy in both primary and rechargeable batteries. This makes PKCELL a great choice for your long-term energy needs. If you need help choosing the right battery, you can ask for a free consultation!
Storage and Handling Best Practices
Getting the most from your ER17335 battery means you need to store and handle it in the right way:
- Keep the batteries in a cool and dry place. It helps to store them at room temperature and keeps their passive state steady. Do not put them in places where it’s damp or where the sun hits them directly. This can cause damage to the battery’s makeup.
- When you handle these batteries, make sure the connectors stay clean and in good shape. This keeps them from short-circuiting.
- Sometimes, when you install a battery, it may not work right away. Do not worry if this happens, as passivation delay can slow down the voltage a little. Give the battery some time to start working by using a small and steady load.
If you use these tips, the battery will work well and last longer for you.
Conclusion
The ER17335 lithium battery is a good choice for many industrial and IoT uses. It gives high energy in a small size. This battery can work in a wide range of temperatures. So, it is a solid option for tough places. If you know its features and what it can do, you will be able to pick the right battery for your needs. When you get these batteries from a trusted supplier like PKCELL, you get products that fit your manufacturing or repair jobs. If you want to use the power of the ER17335 battery for your work, contact us now.
Frequently Asked Questions
What is the typical lifespan of an ER17335 battery?
The ER17335 battery can last up to ten years if you store it the right way. This battery gives you high energy and does not lose much charge on its own. So, you can keep it for a long time before you need to use it, and it will still work well. The low discharge rate helps keep its power over the years.
Can the ER17335 battery be recharged?
No, the ER17335 battery can not be recharged. It runs on lithium thionyl chloride. If you try to charge it, the battery may get too hot or may leak, which can be dangerous. People should use this lithium battery only in products that need single-use and need power to last a long time.
How do I ensure optimal performance from my ER17335 battery?
To keep the ER17335 working well, store it in a cool, dry place that does not change much. For more details, always check its technical datasheet. Do not keep it in storage for a long time, because passivation can happen.
Post time: Jul-14-2025
