3V CR2320 Lithium Button Cell Battery (130mAh) | PKCELL

Short Description:

With 20+ Years of Experience, Pkcell has become a leading Button Cell Battery manufacturer, Specializing in producing the CR2320 battery.

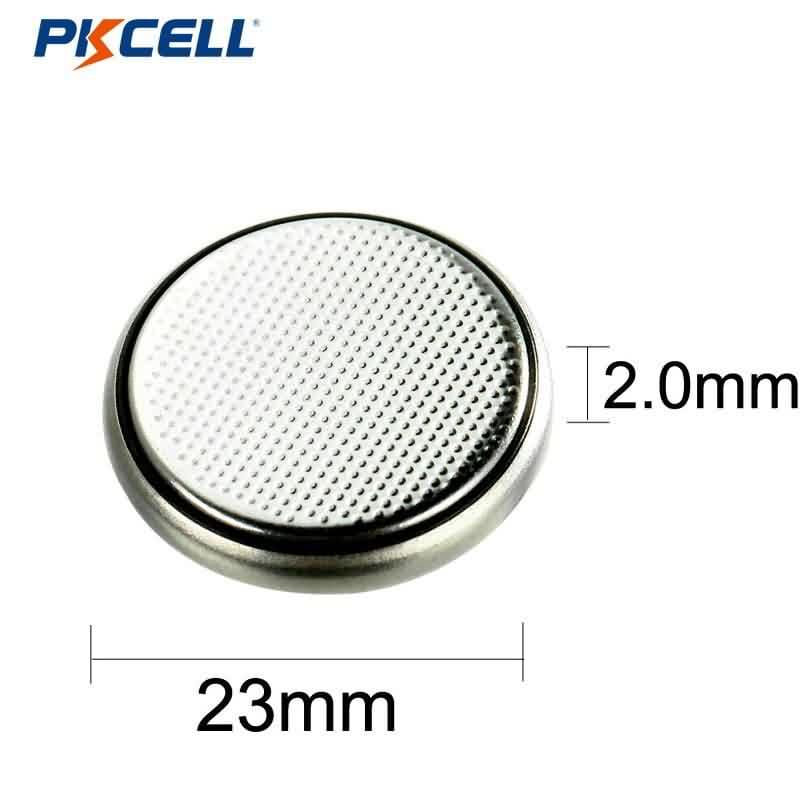

Dimension: 23.0*2.0 mm

Weight: 3.0 g

Self-Discharge Rate (Year): <1%

Shelf Life: >5 Years

Operating Temperature: -20~60 °C (A wide temperature version (-40~85 °C) is also available for demanding applications）

Recommend Constant Current: 3.0 mA

Recommend Pulse Current: 20 mA

Applications: Watches, Lasers, LED tea lights, Vibes, Calculators, Car remote controls, Toys, etc.

CR2320 Equivalent: DL2320,ECR2320,BR2320,LM2320, KCR2320

Certification

Certified By IEC, SNI, BSCI, and More, Ensuring Top-Notch Quality and Safety.

Request Quote Datasheet

Product Detail

Product Tags

Understanding CR2320 Battery

The CR2320 battery is a lithium coin cell with excellent reliability. This button cell is compact and fits well in many things. You can use it in watches, health monitors, and sensors. The CR 2320 gives you steady voltage and has a good battery life. It is simple to use, and you can trust it. The long battery life means you do not have to change it often. That makes 2320 battery a good choice for things that need steady voltage for a long time.

Key Features of Pkcell CR2320

Environmentally Friendly, Lightweight
High Density of Energy
Low Self-discharge
Low Internal Resistance
No Memory Effect
Free of Mercury
Safety Assurance: No fire, No Explosion, No Leakage

Main Applications of Pkcell CR2320

Watches
Car Remote Keys
Computer CMOS
Medical Devices
Memory Backup
Wireless Sensors
Electronic Toys

Specification Of Other LiMnO2 Button Cell Battery

Model	Normal Voltage (V)	Capacity (mAH)	Dimension(mm)	Weight (g)
CR927	3.0	30	9.5×2.7	0.6
CR1216	3.0	25	12.5×1.6	0.7
CR1220	3.0	40	12.5×2.0	0.9
CR1225	3.0	50	12.5×2.5	1.0
CR1616	3.0	50	16.0×1.6	1.2
CR1620	3.0	70	16.0×2.0	1.6
CR1632	3.0	120	16.0×3.2	1.3
CR2016	3.0	75	20.0×1.6	1.8
CR2025	3.0	150	20.0×2.5	2.4
CR2032	3.0	210	20.0×3.2	3.0
CR2032	3.0	220	20.0×3.2	3.1
CR2050	3.0	150	20.0×2.5	2.4
CR2320	3.0	130	23.0×2.0	3.0
CR2325	3.0	190	23.0×2.5	3.5
CR2330	3.0	260	23.0×3.0	4.0
CR2430	3.0	270	24.5×3.0	4.5
CR2450	3.0	600	24.5×5.0	6.2
CR2477	3.0	900	24.5×7.7	7.0
CR3032	3.0	500	30.0×3.2	6.8

More Than Just Individual Cells - We Also Offer Button Cell Batteries with Different Terminations

different button cell battery terminations

GET A QUICK QUOTE

Why Choose Pkcell Battery?

Decades Proven Expertise

20 years in battery manufacturing. Trusted by global brands and customers in 100+ countries.

Global Reach

Experienced exporter to 100+ countries. Offering flexible Air/Sea shipping and delivery terms.

Flexible Partnership

Flexible Formal Order MOQ (from $500) and samples available. Partnering with you from design to delivery.

Certified Quality

Strict QC in our 28,000 ㎡ facility. IEC, CE, RoHS certified for reliable performance.

Expert Support

Dedicated technical team with deep Lithium battery knowledge, ready to support your integration.

Custom Solutions

50+ R&D experts design tailored battery packs and solutions for your unique needs.

Learn More About Pkcell

Typical Discharge Characteristics

Warning:

Do not short-circuit, recharge, heat, disassemble
Do not force-discharge
Do not make the anode and the cathode reversed
Do not solder directly

Frequently Asked About CR2320 LiMnO2 Button Cell Battery

How long will my order take, how can I pay, and what are the shipping options?

Lead Time: Standard samples typically arrive in 7-12 days. Formal orders usually take around 25 days, though smaller quantities might ship faster, potentially within 15-18 days.
Payment Methods: We accept various payment types, including T/T (Telegraphic Transfer), L/C (Letter of Credit), and PayPal.
Shipping: We offer flexibility! Depending on your needs and location, we can ship your order via air freight (using carriers like FEDEX, DHL, UPS, EMS, etc.) or via sea freight.
Delivery Terms: We can work with several common international shipping terms, including EXW, FCA, FOB, CFR, and DDU.

What is your minimum order quantity (MOQ), and can I get samples first?

We have a minimum order value of USD $500. The actual quantity you receive depends on the unit price of the specific batteries you choose. Absolutely! We understand you need to test our products. We're happy to provide samples for your evaluation before you place a formal order.

Can these coin cell batteries be customized for product integration?

Yes, we support the customization of CR cell batteries for product integration. This includes adding solder tabs and pins according to your specific requirements.

What is the difference between a CR2320 and a CR2032 battery?

This is a very common question, and the key differences are their physical size, which directly impacts their capacity and compatibility.

Diameter: The CR2320 is wider at 23mm vs. the CR2032 at 20mm.
Thickness: The CR2320 is significantly thinner at 2.0mm vs. the CR2032 at 3.2mm.
Capacity: The CR2032 has a higher capacity (around 225mAh) than the CR2320 (around 150mAh) due to its greater thickness.

Because of these size differences, they are not interchangeable. A CR2320 will not fit correctly in a CR2032 compartment, and a CR2032 will be too thick to fit in a device designed for a CR2320.

Are there any equivalent or replacement batteries for the CR2320?

Due to its unique combination of diameter (23mm) and thickness (2.0mm), there are no direct drop-in equivalents for the CR2320. Other batteries may have a similar voltage, but their different diameters or thicknesses mean they will not fit correctly in the battery holder. For the safety of your device, you should always replace a CR2320 with another CR2320 battery. Some manufacturers may use the designation DL2320 or BR2320, which are cross-references but are still the same physical size.

Is the CR2320 battery rechargeable?

No, the CR2320 is a primary (non-rechargeable) battery. It is designed for single use only, and attempting to recharge it is extremely dangerous. Recharging can lead to severe safety hazards, including internal short-circuits, leakage, overheating, rupture, or fire. Always replace a depleted CR2320 battery with a new one.

What essential safety precautions should be followed when handling CR2320 batteries?

While generally safe when used correctly, proper handling is crucial. Because coin cell batteries can be a choking hazard, they must be kept out of reach of children and pets. Additionally, you should:

Never try to recharge the battery.
Do not short-circuit the terminals.
Avoid puncturing, crushing, or disassembling the cell.
Keep it away from open flames and extreme heat beyond its specified operating temperature.
Dispose of used or damaged batteries properly according to local regulations for lithium batteries.
