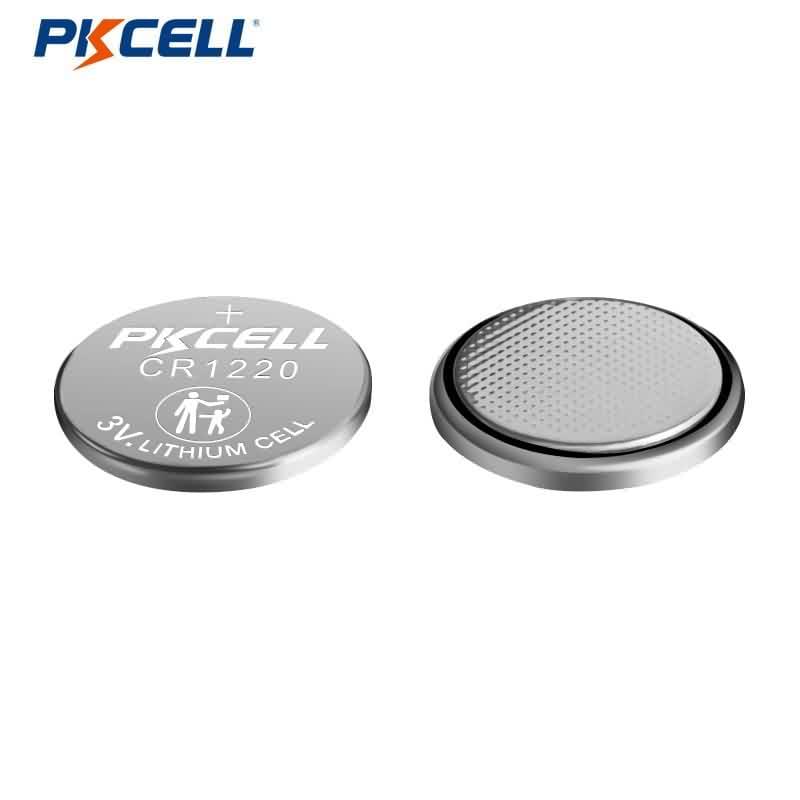

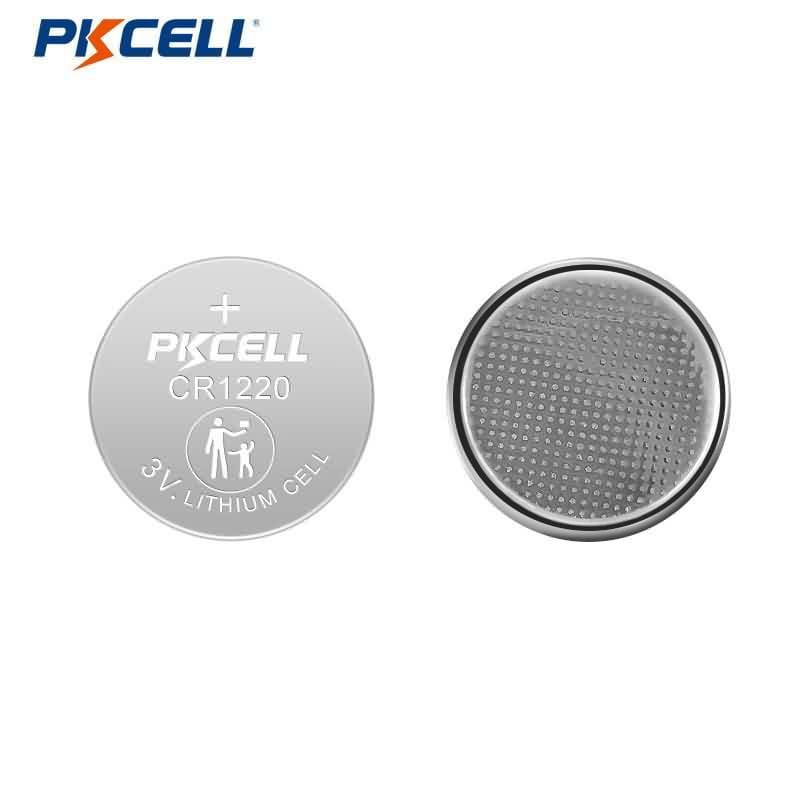

3V CR1220 Lithium Button Cell Battery (40mAh) | PKCELL
Short Description:
With 20+ Years of Experience, Pkcell has become a leading Li-Socl2 Battery manufacturer, Specializing in producing the CR1220 3V battery.
Dimension: 12.5*2.0 mm
Weight: 0.9 g
Self-Discharge Rate (Year): <1%
Shelf Life: >5 Years
Operating Temperature: -20~60 °C (A wide temperature version (-40~85 °C) is also available for demanding applications）
Recommend Constant Current: 1.0 mA
Recommend Pulse Current: 5 mA
Applications: Watches, Lasers, LED tea lights, Vibes, Calculators, Car remote controls, Toys, etc.
CR1220 Equivalent: DL1220,ECR1220,BR1220,LM1220, KCR1220,SB-T13
Certification
Certified By IEC, SNI, BSCI, and More, Ensuring Top-Notch Quality and Safety.
Understanding CR1220 Battery
The1220 battery is a lithium coin cell. This coin cell has a round shape and is small in size. It gives out a voltage of 3 volts. This type of lithium battery is known for giving steady power, so you can find it in many small electronic devices. The batteries cr 1220 is highly valued in the realm of portable power solutions, thanks to its compact size and reliable performance.
Key Features of Pkcell CR1220
-
Environmentally Friendly, Lightweight
- High Density of Energy
- Low Self-discharge
- Low Internal Resistance
- No Memory Effect
- Free of Mercury
- Safety Assurance: No fire, No Explosion, No Leakage
Main Applications of Pkcell CR1220
- Watches
- Car Remote Keys
- Computer CMOS
- Medical Devices
- Memory Backup
- Wireless Sensors
- Electronic Toys
Specification Of Other LiMnO2 Button Cell Battery
| Model | Normal Voltage (V) | Capacity (mAH) | Dimension(mm) | Weight (g) |
|---|---|---|---|---|
| CR927 | 3.0 | 30 | 9.5×2.7 | 0.6 |
| CR1216 | 3.0 | 25 | 12.5×1.6 | 0.7 |
| CR1220 | 3.0 | 40 | 12.5×2.0 | 0.9 |
| CR1225 | 3.0 | 50 | 12.5×2.5 | 1.0 |
| CR1616 | 3.0 | 50 | 16.0×1.6 | 1.2 |
| CR1620 | 3.0 | 70 | 16.0×2.0 | 1.6 |
| CR1632 | 3.0 | 120 | 16.0×3.2 | 1.3 |
| CR2016 | 3.0 | 75 | 20.0×1.6 | 1.8 |
| CR2025 | 3.0 | 150 | 20.0×2.5 | 2.4 |
| CR2032 | 3.0 | 210 | 20.0×3.2 | 3.0 |
| CR2032 | 3.0 | 220 | 20.0×3.2 | 3.1 |
| CR2050 | 3.0 | 150 | 20.0×2.5 | 2.4 |
| CR2320 | 3.0 | 130 | 23.0×2.0 | 3.0 |
| CR2325 | 3.0 | 190 | 23.0×2.5 | 3.5 |
| CR2330 | 3.0 | 260 | 23.0×3.0 | 4.0 |
| CR2430 | 3.0 | 270 | 24.5×3.0 | 4.5 |
| CR2450 | 3.0 | 600 | 24.5×5.0 | 6.2 |
| CR2477 | 3.0 | 900 | 24.5×7.7 | 7.0 |
| CR3032 | 3.0 | 500 | 30.0×3.2 | 6.8 |
More Than Just Individual Cells - We Also Offer Button Cell Batteries with Different Terminations
Why Choose Pkcell Battery?
Typical Discharge Characteristics
Warning:
- Do not short-circuit, recharge, heat, disassemble
- Do not force-discharge
- Do not make the anode and the cathode reversed
- Do not solder directly
Frequently Asked About CR1220 LiMnO2 Button Cell Battery
- Lead Time: Standard samples typically arrive in 7-12 days. Formal orders usually take around 25 days, though smaller quantities might ship faster, potentially within 15-18 days.
- Payment Methods: We accept various payment types, including T/T (Telegraphic Transfer), L/C (Letter of Credit), and PayPal.
- Shipping: We offer flexibility! Depending on your needs and location, we can ship your order via air freight (using carriers like FEDEX, DHL, UPS, EMS, etc.) or via sea freight.
- Delivery Terms: We can work with several common international shipping terms, including EXW, FCA, FOB, CFR, and DDU.
We have a minimum order value of USD $500. The actual quantity you receive depends on the unit price of the specific batteries you choose. Absolutely! We understand you need to test our products. We're happy to provide samples for your evaluation before you place a formal order.
Yes, we support the customization of CR cell batteries for product integration. This includes adding solder tabs and pins according to your specific requirements.
This is a very important question, and the main difference is their physical size, which makes them completely non-interchangeable.
- CR1220 vs. CR1225: They share the same 12.5mm diameter, but the CR1220 is thinner at 2.0mm compared to the CR1225's 2.5mm. This slight difference in thickness prevents them from being used interchangeably.
- CR1220 vs. CR2032: The CR1220 is much smaller than the CR2032 in both diameter (12.5mm vs. 20mm) and thickness (2.0mm vs. 3.2mm). A CR2032 has a much higher capacity, but it won't fit in a device designed for a CR1220.
Using the wrong size battery will either prevent it from fitting in the compartment or result in a poor electrical connection. Always verify your device's specifications to ensure you purchase the correct battery.
Due to its unique combination of diameter (12.5mm) and thickness (2.0mm), there are no direct drop-in equivalents for the CR1220. While some batteries may have a similar voltage, any difference in size will prevent them from fitting or functioning correctly. For the safety and operation of your device, you should always replace a CR1220 with another CR1220.
No, it is not. The CR1220 is a primary (non-rechargeable) battery and is not built to be charged. Attempting to do so is extremely dangerous and could lead to a serious safety incident, such as the battery leaking, overheating, or even exploding. Once a CR1220 has been depleted, it should be properly disposed of and replaced with a new one.
All coin cell batteries, including the CR1220, demand careful handling. The most critical precaution is to keep them out of reach of children and pets, as they pose a serious ingestion hazard. Additionally:
- Never try to recharge the battery.
- Do not short-circuit the terminals.
- Avoid exposing the battery to fire, extreme heat, or moisture.
- Always dispose of used or damaged batteries responsibly according to your local regulations.
