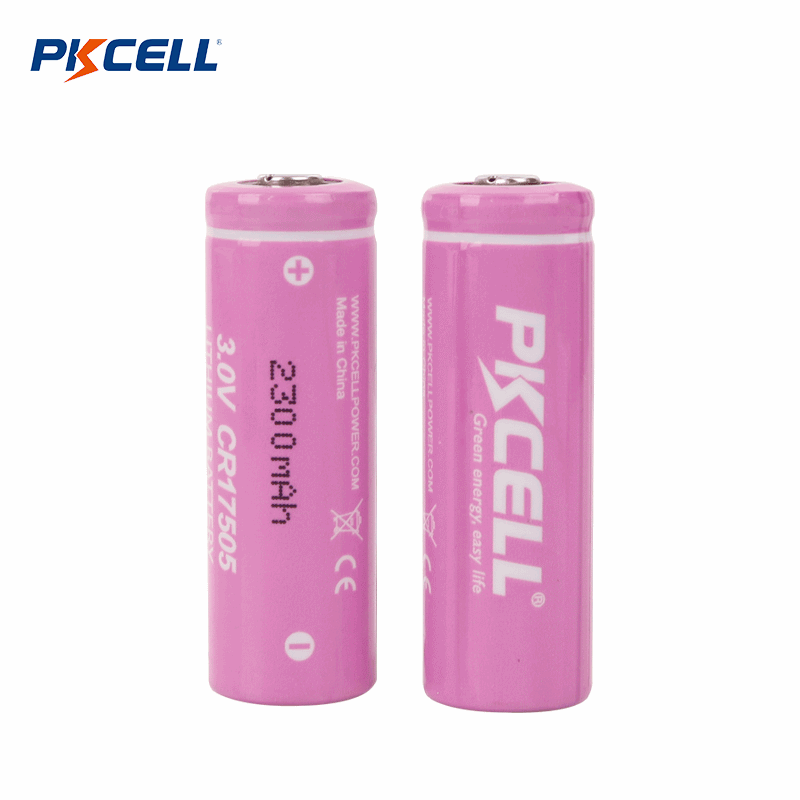

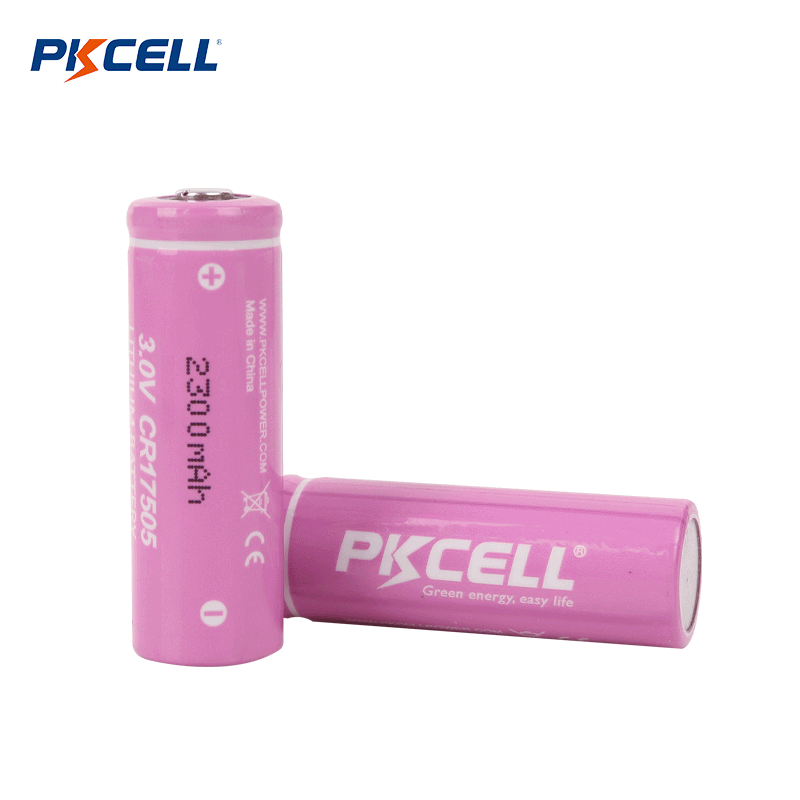

3V CR17505 LI-MnO2 Battery (2300mAh)
Short Description:
With 20+ Years of Experience, Pkcell has become a leading Li-MnO2 Battery manufacturer, Specializing in producing the CR17505 battery.
Dimension: 17.5*50.5 mm
Weight: 28 g
Self-Discharge Rate (Year): <1%
Shelf Life: >10 Years
Operating Temperature: -40~85 °C
Max.Constant Current: 1500 mA
Applications: Consumer Electronics, Medical Devices, Security Systems, Utility Meters, Military and Aerospace.
Certification
Certified By IEC, SNI, BSCI, and More, Ensuring Top-Notch Quality and Safety.
Understanding CR17505 Battery
The CR17505 battery is a 3-volt cylindrical lithium battery. It is compact yet offers powerful and consistent performance. This primary battery is designed for applications requiring long-term reliability and a stable voltage supply. Its high energy density and low self-discharge rate make it an excellent choice for a variety of critical devices. You'll often find the CR17505 powering smart utility meters, industrial control systems, security sensors, and backup power for memory in electronic devices, where its enduring power and wide operating temperature range are highly valued.
Key Features of Pkcell CR17505
- High Energy Density
- High Open-Circuit Voltage
- Wide Range of Operating Temperatures
- Stable Operating Voltage and Current
- Long Operating Time
- Low Self-Discharge Rate (less than 1% per year at 25ºC)

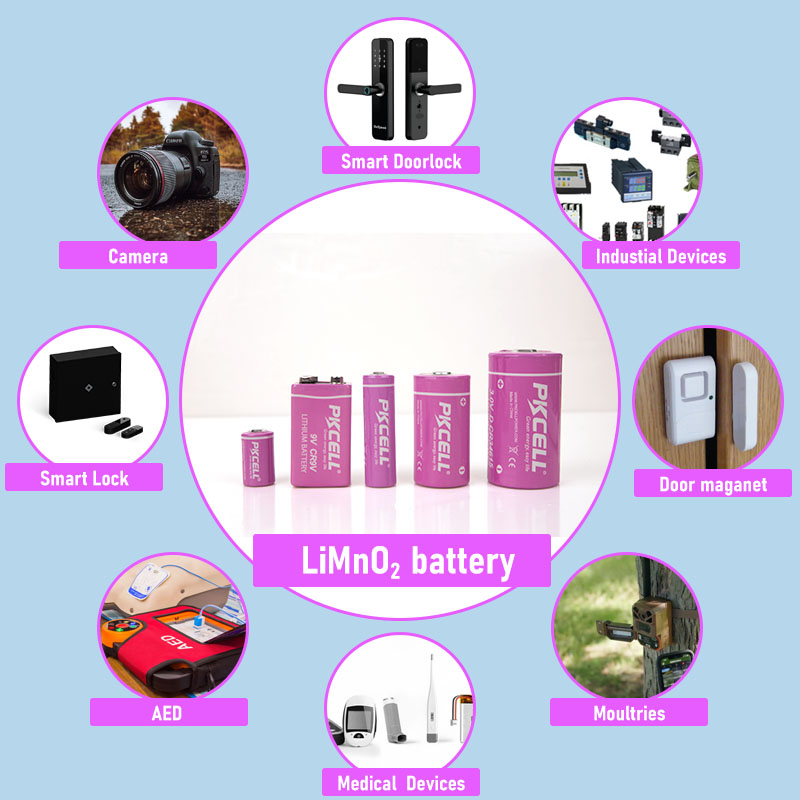

Main Applications of Pkcell CR17505
- Utility Metering
- Security Systems
- Asset Tracking & Logistics
- Medical Devices
- Memory Backup
- Remote Monitoring & Telemetry
Specification Of Other LiMnO2 Button Cell Battery
| Cylindrical LiMnO2 Battery | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Nominal Voltage (V) | Nominal Capacity (mAh) | Standard Discharge Current (mA) | End Voltage (V) | Max. Diameter (mm) | Max. Height (mm) | Reference Weight (g) | Test Temperature (°C) |
| CR17345(CR123A) | 3v | 1500.0 | 10 | 2 | 17.0 | 34.5 | 16 | 23±3 |
| 3v | 1600.0 | 10 | 2 | 17.0 | 34.5 | 16 | 23±3 | |
| 3v | 1700.0 | 10 | 2 | 17.0 | 34.5 | 16 | 23±3 | |
| 3v | 2100.0 | 10 | 2 | 17.0 | 34.5 | 16 | 23±3 | |
| CR15H270(CR2) | 3v | 850.0 | 10 | 2 | 15.6 | 27.0 | 11 | 23±3 |
| 3v | 1000 | 10 | 2 | 15.6 | 27.0 | 11 | 23±3 | |
| CR17335 | 3v | 1500.0 | 10 | 2 | 17.0 | 33.5 | 16 | 23±3 |
| CR14250 | 3v | 650.0 | 10 | 2 | 14.5 | 25.0 | 10 | 23±3 |
| 3v | 900 | 10 | 2 | 14.5 | 25.0 | 10 | 23±3 | |
| 3v | 1050 | 10 | 2 | 14.5 | 25.0 | 10 | 23±3 | |
| CR14505 | 3v | 1400.0 | 10 | 2 | 14.5 | 50.5 | 17 | 23±3 |
| CR14335 | 3v | 800.0 | 10 | 2 | 14.5 | 33.5 | 13 | 23±3 |
| CR17450 | 3v | 2000.0 | 10 | 2 | 17.0 | 45.0 | 25 | 23±3 |
| CR17450 | 3v | 2400.0 | 10 | 2 | 17.0 | 45.0 | 25 | 23±3 |
| CR17505 | 3v | 2300.0 | 10 | 2 | 17.0 | 50.5 | 28 | 23±3 |
| 3v | 2800.0 | 10 | 2 | 17.0 | 50.5 | 28 | 23±3 | |
| CR18505 | 3v | 2500 | 10 | 2 | 18.5 | 50.5 | 35 | 20±3 |
| CR11108(CR1/3N) | 3v | 170.0 | 1 | 2 | 11.6 | 10.8 | 3.3 | 23±3 |
| CR-V3 | 6v | 3000.0 | 20 | 2 | 29X14.5X52 | 34 | 23±3 | |
| CR9V | 9v | 1200 | 1 | 5.4 | 48.5X36.5X17.5 | 29 | 23±2 | |
| CR26500 | 3v | 5400 | 10 | 2 | 26.5 | 50.5 | 62 | 20±3 |
| CR34615 | 3v | 12000 | 10 | 2 | 34 | 61.5 | 125 | 20±3 |
| CR-P2 | 6v | 1200 | 10 | 4 | 34.8X35.8X19.5 | 34 | 23±3 | |
| 6v | 1400.0 | 10 | 4 | 34.8X35.8X19.5 | 34 | 23±3 | ||
| 2CR5 | 6v | 1400.0 | 10 | 4 | 34X45X17 | 34 | 23±3 | |
More Than Just Individual Cells - We Also Offer CR Cylindrical Batteries with Different Terminations
Why Choose Pkcell Battery?
Typical Discharge Characteristics
Warning:
- Do not short-circuit, recharge, heat, disassemble
- Do not force-discharge.
- Do not make the anode and the cathode reversed
- Do not solder directly
Frequently Asked About CR17505 LiMnO2 Cylindrical Battery
- Lead Time: Standard samples typically arrive in 7-12 days. Formal orders usually take around 25 days, though smaller quantities might ship faster, potentially within 15-18 days.
- Payment Methods: We accept various payment types, including T/T (Telegraphic Transfer), L/C (Letter of Credit), and PayPal.
- Shipping: We offer flexibility! Depending on your needs and location, we can ship your order via air freight (using carriers like FEDEX, DHL, UPS, EMS, etc.) or via sea freight.
- Delivery Terms: We can work with several common international shipping terms, including EXW, FCA, FOB, CFR, and DDU.
We have a minimum order value of USD $500. The actual quantity you receive depends on the unit price of the specific batteries you choose. Absolutely! We understand you need to test our products. We're happy to provide samples for your evaluation before you place a formal order.
-
Advantages of LiMnO2 (vs. LiSOCl2):
- Generally safer with better thermal stability.
- Lower cost.
- Less noticeable voltage delay/passivation effect.
- Often, better pulse discharge capability (depending on construction).
-
Disadvantages of LiMnO2 (vs. LiSOCl2):
- Lower energy density (less capacity for the size/weight).
- Lower nominal voltage (3.0V vs. 3.6V).
- Less stable/flat discharge voltage curve.
- Reduced performance at extremely low temperatures compared to LiSOCl2.
Yes, we support the customization of CR batteries for product integration. This includes adding solder tabs and pins according to your specific requirements.
No, the CR17505 is a primary (non-rechargeable) battery. It is designed for single use only, and attempting to recharge it is extremely dangerous. Although it is similar in size to a standard AA battery, it is not a replacement. A CR17505 has a nominal voltage of 3V, while an AA battery has a nominal voltage of 1.5V. Using a CR17505 in a device designed for an AA battery can cause severe damage due to the higher voltage.
The primary difference is the battery chemistry. The CR17505 uses Lithium Manganese Dioxide (Li-MnO₂) chemistry, which is generally better for moderate, continuous discharge and some pulse capabilities. The ER17505 (which we've discussed before) uses Lithium Thionyl Chloride (Li-SOCl₂) chemistry, which is known for its extremely low self-discharge and excellent performance in low-drain applications, often with a higher 3.6V nominal voltage. While they may have the same dimensions, their performance profiles are different, and they are not interchangeable.
While generally safe when used correctly, proper handling is crucial. To ensure safety, you should:
- Never try to recharge the battery.
- Avoid short-circuiting the terminals.
- Do not puncture, crush, or disassemble the cell.
- Keep it away from open flames and extreme heat beyond its specified operating temperature.
- Dispose of used or damaged batteries properly according to local regulations for lithium batteries.
