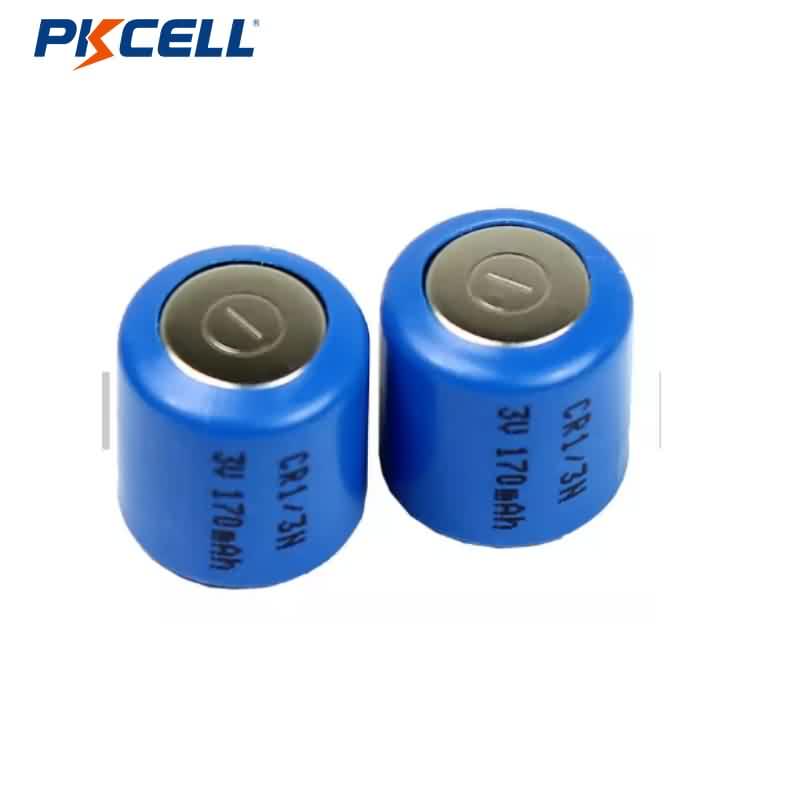

3V CR1/3N LI-MnO2 Battery (160mAh)
Short Description:
With 20+ Years of Experience, Pkcell has become a leading Li-MnO2 Battery manufacturer, Specializing in producing the CR1/3N battery.
Dimension: 11.6*10.8 mm
Weight: 3.3 g
Self-Discharge Rate (Year): <1%
Shelf Life: >10 Years
Operating Temperature: -40~85 °C
Applications: Camera, photo, LED flashlight, steam light and so on
Certification
Certified By IEC, SNI, BSCI, and More, Ensuring Top-Notch Quality and Safety.
Understanding CR1/3N Battery
The CR 1 3N battery is a compact, 3-volt lithium primary battery known for its high energy density and exceptionally long shelf life. It can last over a decade in storage. Despite its small size, the 1 3n lithium battery provides a stable and efficient power source, making it a popular choice for devices that require consistent, long-lasting energy. You'll commonly find the 1 3N battery in applications such as pet electronic collars, laser sights, certain medical devices like digital thermometers and blood glucose meters.
Key Features of Pkcell CR1/3N
- High Energy Density
- High Open-Circuit Voltage
- Wide Range of Operating Temperatures
- Stable Operating Voltage and Current
- Long Operating Time
- Low Self-Discharge Rate (less than 1% per year at 25ºC)
Main Applications of Pkcell CR1/3N
- Utility Metering
- Security Systems
- Asset Tracking & Logistics
- Medical Devices
- Memory Backup
- Remote Monitoring & Telemetry
Specification Of Other LiMnO2 Button Cell Battery
| Cylindrical LiMnO2 Battery | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Nominal Voltage (V) | Nominal Capacity (mAh) | Standard Discharge Current (mA) | End Voltage (V) | Max. Diameter (mm) | Max. Height (mm) | Reference Weight (g) | Test Temperature (°C) |
| CR17345(CR123A) | 3v | 1500.0 | 10 | 2 | 17.0 | 34.5 | 16 | 23±3 |
| 3v | 1600.0 | 10 | 2 | 17.0 | 34.5 | 16 | 23±3 | |
| 3v | 1700.0 | 10 | 2 | 17.0 | 34.5 | 16 | 23±3 | |
| 3v | 2100.0 | 10 | 2 | 17.0 | 34.5 | 16 | 23±3 | |
| CR15H270(CR2) | 3v | 850.0 | 10 | 2 | 15.6 | 27.0 | 11 | 23±3 |
| 3v | 1000 | 10 | 2 | 15.6 | 27.0 | 11 | 23±3 | |
| CR17335 | 3v | 1500.0 | 10 | 2 | 17.0 | 33.5 | 16 | 23±3 |
| CR14250 | 3v | 650.0 | 10 | 2 | 14.5 | 25.0 | 10 | 23±3 |
| 3v | 900 | 10 | 2 | 14.5 | 25.0 | 10 | 23±3 | |
| 3v | 1050 | 10 | 2 | 14.5 | 25.0 | 10 | 23±3 | |
| CR14505 | 3v | 1400.0 | 10 | 2 | 14.5 | 50.5 | 17 | 23±3 |
| CR14335 | 3v | 800.0 | 10 | 2 | 14.5 | 33.5 | 13 | 23±3 |
| CR17450 | 3v | 2000.0 | 10 | 2 | 17.0 | 45.0 | 25 | 23±3 |
| CR17450 | 3v | 2400.0 | 10 | 2 | 17.0 | 45.0 | 25 | 23±3 |
| CR17505 | 3v | 2300.0 | 10 | 2 | 17.0 | 50.5 | 28 | 23±3 |
| 3v | 2800.0 | 10 | 2 | 17.0 | 50.5 | 28 | 23±3 | |
| CR18505 | 3v | 2500 | 10 | 2 | 18.5 | 50.5 | 35 | 20±3 |
| CR11108(CR1/3N) | 3v | 170.0 | 1 | 2 | 11.6 | 10.8 | 3.3 | 23±3 |
| CR-V3 | 6v | 3000.0 | 20 | 2 | 29X14.5X52 | 34 | 23±3 | |
| CR9V | 9v | 1200 | 1 | 5.4 | 48.5X36.5X17.5 | 29 | 23±2 | |
| CR26500 | 3v | 5400 | 10 | 2 | 26.5 | 50.5 | 62 | 20±3 |
| CR34615 | 3v | 12000 | 10 | 2 | 34 | 61.5 | 125 | 20±3 |
| CR-P2 | 6v | 1200 | 10 | 4 | 34.8X35.8X19.5 | 34 | 23±3 | |
| 6v | 1400.0 | 10 | 4 | 34.8X35.8X19.5 | 34 | 23±3 | ||
| 2CR5 | 6v | 1400.0 | 10 | 4 | 34X45X17 | 34 | 23±3 | |
More Than Just Individual Cells - We Also Offer CR Cylindrical Batteries with Different Terminations
Why Choose Pkcell Battery?
Typical Discharge Characteristics
Warning:
- Do not short-circuit, recharge, heat, disassemble
- Do not force-discharge.
- Do not make the anode and the cathode reversed
- Do not solder directly
Frequently Asked About CR1/3N LiMnO2 Cylindrical Battery
- Lead Time: Standard samples typically arrive in 7-12 days. Formal orders usually take around 25 days, though smaller quantities might ship faster, potentially within 15-18 days.
- Payment Methods: We accept various payment types, including T/T (Telegraphic Transfer), L/C (Letter of Credit), and PayPal.
- Shipping: We offer flexibility! Depending on your needs and location, we can ship your order via air freight (using carriers like FEDEX, DHL, UPS, EMS, etc.) or via sea freight.
- Delivery Terms: We can work with several common international shipping terms, including EXW, FCA, FOB, CFR, and DDU.
We have a minimum order value of USD $500. The actual quantity you receive depends on the unit price of the specific batteries you choose. Absolutely! We understand you need to test our products. We're happy to provide samples for your evaluation before you place a formal order.
-
Advantages of LiMnO2 (vs. LiSOCl2):
- Generally safer with better thermal stability.
- Lower cost.
- Less noticeable voltage delay/passivation effect.
- Often, better pulse discharge capability (depending on construction).
-
Disadvantages of LiMnO2 (vs. LiSOCl2):
- Lower energy density (less capacity for the size/weight).
- Lower nominal voltage (3.0V vs. 3.6V).
- Less stable/flat discharge voltage curve.
- Reduced performance at extremely low temperatures compared to LiSOCl2.
Yes, we support the customization of CR batteries for product integration. This includes adding solder tabs and pins according to your specific requirements.
CR1/3N batteries are commonly used in dog collars, laser sights, medical instruments, and vintage cameras.
Yes, CR1/3N is equivalent to 2L76, DL1/3N, and other similar codes — they are interchangeable in most applications.
CR1/3N is a 3V lithium battery; there are 1.5V alkaline alternatives like LR44 x2, but they have lower performance.
In low-drain devices like sights or collars, it can last from several months to a year, depending on usage.
Store in a cool, dry place away from metal objects; avoid short-circuiting. Look for batteries with UL or UN38.3 certifications for safety.
