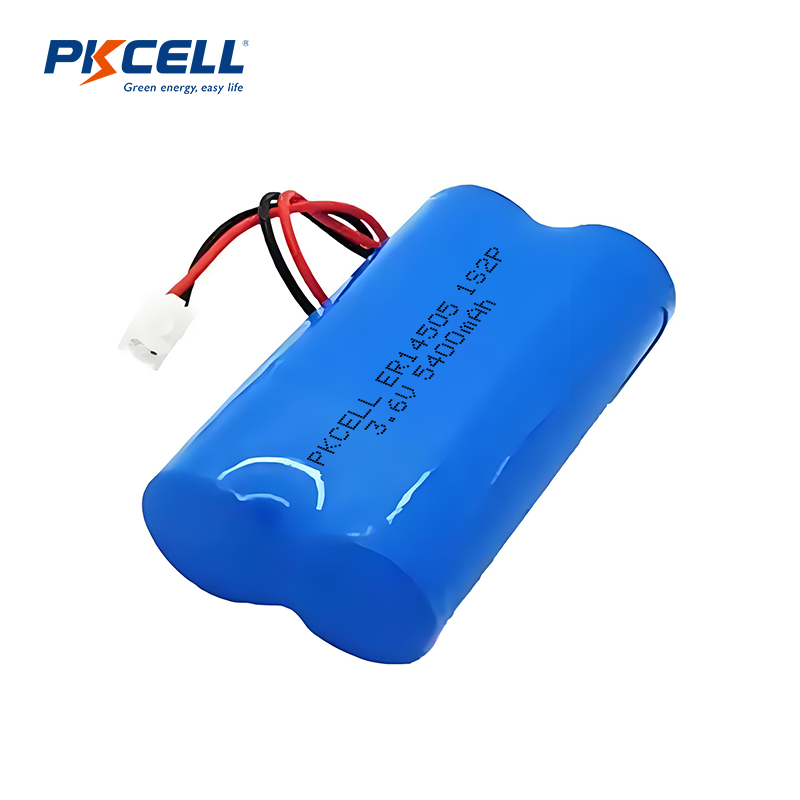

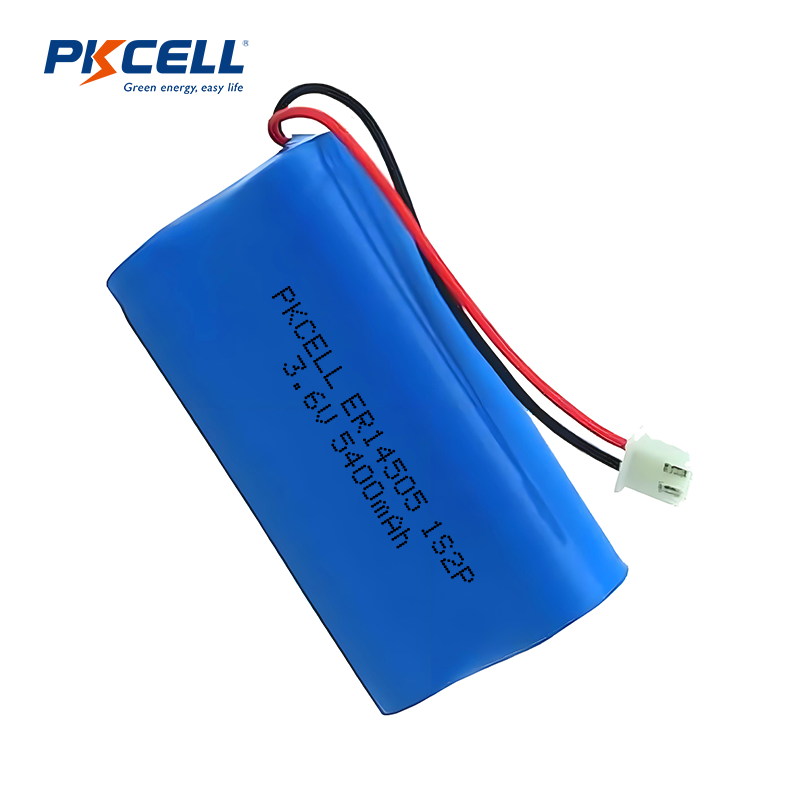

3.6V ER14505 5400mAh 1s2p LiSoCl2 Battery Pack
Short Description:
With 20+ Years of Experience, Pkcell has become a leading Li-Socl2 Battery manufacturer, Specializing in the production of the ER14505 battery packs.
Connection: 1s2p
Self-Discharge Rate (Year): <1%
Shelf Life: >10 Years
Operating Temperature: -55~85 °C
Applications : Electronic devices and Electric power/water/gas meters,Memory ICs and more.
Certification
Certified By IEC, SNI, BSCI, and More, Ensuring Top-Notch Quality and Safety.
Understanding ER14505 LiSoCl2 Battery Pack
Featuring a 1S2P configuration, the 3.6V ER14505 5400mAh LiSOCl₂ battery pack combines two high-energy ER14505 cells in parallel to boost capacity while maintaining a steady 3.6V output. This compact yet powerful pack offers excellent reliability and long operational life, making it well-suited for devices that require consistent performance over extended periods—such as environmental sensors, tracking systems, and remote data loggers. With a high energy-to-size ratio and low self-discharge characteristics, it ensures minimal maintenance and maximum uptime. Optional customizations, including wire leads, connectors, and safety components, are available to fit unique application needs.
Portable Power Solutions from Design to Delivery for Over 20 Years
Besides manufacturing Lithium battery cells with different chemistries, PKCELL has been assembling custom battery packs in different battery chemistries for all electronic applications. All custom-designed battery packs have been built to match our customers’ unique requirements. From medical devices and security equipment to emergency lighting systems and many industrial applications. We can design and manufacture cost-effective perfect portable power solutions for your latest power needs.
Request a quote on customizing your battery packs and assemblies, or talk to Custom Service to learn more.
Different Terminations& Wires for PKCELL Battery Pack
Product Usage
1. Utility meter (water, electricity, gas meter and AMR)
2. Alarm or security equipment (smoke alarm system and detector)
3. GPS system, GSM system
4. Real-time clock, Car electronics
5. Digital control machine
6. Wireless and other military equipment
7. Remote monitoring systems
8. Signal lights and the post indicator
9. Back-up record power, Medical equipment
Advantages
1. High energy density (620Wh/kg); Which is the highest among all lithium batteries.
2. High open circuit voltage (3.66V for single cell), high operating voltage with load, normally ranging from 3.3V to 3.6V).
3. Wide range of operating temperature (-55℃~+85℃).
4. Stable voltage and current, over 90% of the cell capacity is discharged at high plateau voltage.
5. Long operating time (over 8 years) for continuous low current discharge with medium current pulses.
6. Low self-discharge rate (less than 1% per year) and long storage life (over 10 years under normal room temperature).
