3.6V ER14335 6600mAh 1s4p LiSoCl2 Battery Pack
Short Description:
With 20+ Years of Experience, Pkcell has become a leading Li-Socl2 Battery manufacturer, Specializing in the production of the ER14335 battery packs.
Connection: 1s4p
Self-Discharge Rate (Year): <1%
Shelf Life: >10 Years
Operating Temperature: -55~85 °C
Applications : Electronic devices and Electric power/water/gas meters,Memory ICs and more.
Certification
Certified By IEC, SNI, BSCI, and More, Ensuring Top-Notch Quality and Safety.
Understanding ER14335 LiSoCl2 Battery Pack

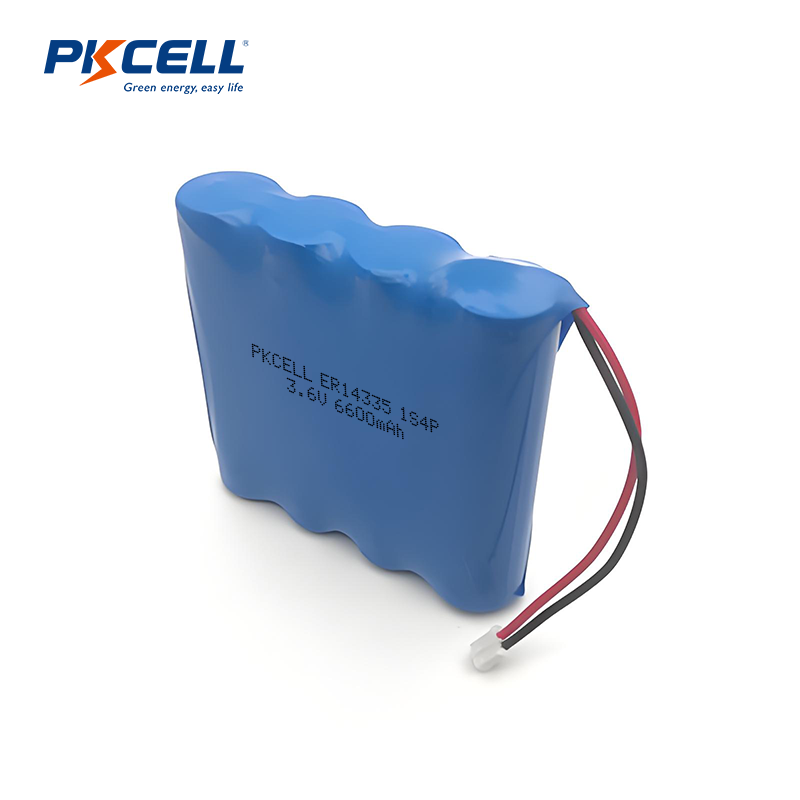

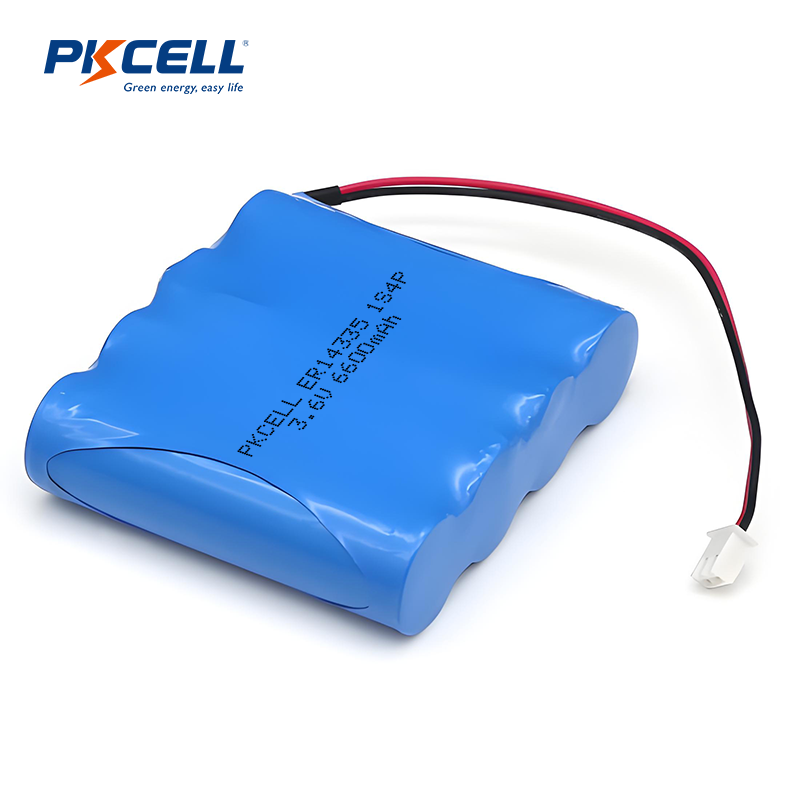

The 3.6V ER14335 6600mAh 1S4P LiSOCl₂ battery pack is a compact, high-capacity power solution ideal for long-term, low-drain applications. Configured with four ER14335 cells in parallel, it delivers a consistent 3.6V output and a total capacity of 6600mAh. This makes it well-suited for use in wireless sensors, security devices, tracking systems, and other equipment where battery changes are infrequent or difficult. Its lithium thionyl chloride chemistry offers excellent energy density, an ultra-low self-discharge rate, and reliable performance in harsh environments. With flexible design options like customized leads, connectors, and protection elements, this battery pack can be easily integrated into specialized electronic systems.
Portable Power Solutions from Design to Delivery for Over 20 Years
Besides manufacturing Lithium battery cells with different chemistries, PKCELL has been assembling custom battery packs in different battery chemistries for all electronic applications. All custom-designed battery packs have been built to match our customers’ unique requirements. From medical devices and security equipment to emergency lighting systems and many industrial applications. We can design and manufacture cost-effective perfect portable power solutions for your latest power needs.
Request a quote on customizing your battery packs and assemblies, or talk to Custom Service to learn more.
Different Terminations& Wires for PKCELL Battery Pack
Product Usage
1. Utility meter (water, electricity, gas meter and AMR)
2. Alarm or security equipment (smoke alarm system and detector)
3. GPS system, GSM system
4. Real-time clock, Car electronics
5. Digital control machine
6. Wireless and other military equipment
7. Remote monitoring systems
8. Signal lights and the post indicator
9. Back-up record power, Medical equipment
Advantages
1. High energy density (620Wh/kg); Which is the highest among all lithium batteries.
2. High open circuit voltage (3.66V for single cell), high operating voltage with load, normally ranging from 3.3V to 3.6V).
3. Wide range of operating temperature (-55℃~+85℃).
4. Stable voltage and current, over 90% of the cell capacity is discharged at high plateau voltage.
5. Long operating time (over 8 years) for continuous low current discharge with medium current pulses.
6. Low self-discharge rate (less than 1% per year) and long storage life (over 10 years under normal room temperature).
